CV600
CV600 PRO
CV600 PRO+
-
Sleeping berths
2 - 3
-
Length from
599 cm
-
Width from
205 cm
-
Height
258 cm
-
Bed type
Double bed
-
Sleeping berths
2 - 4
-
Length from
599 cm
-
Width from
205 cm
-
Height
261 cm
-
Bed type
Double bed
-
Sleeping berths
2 - 4
-
Length from
599 cm
-
Width from
205 cm
-
Height
261 cm
-
Bed type
Double bed

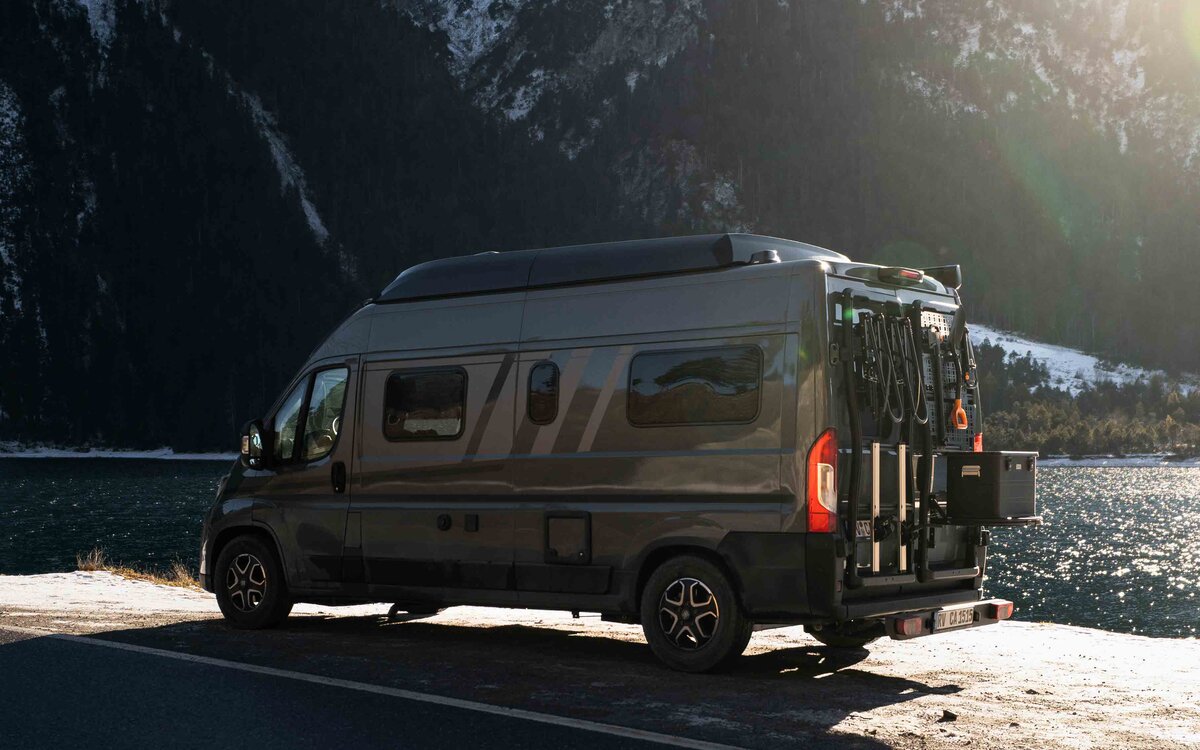

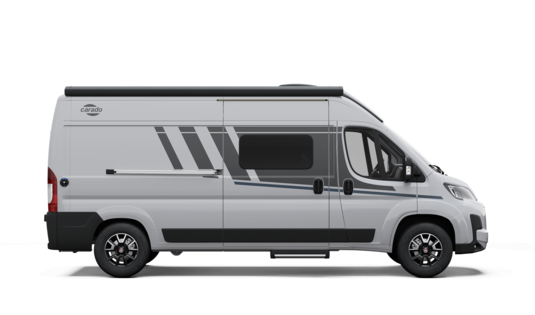

Agile on the road, spacious when living: the CV600 is the “bigger brother” of our smallest model – and therefore the perfect camper van for anyone wanting to combine maneuverability with more space.

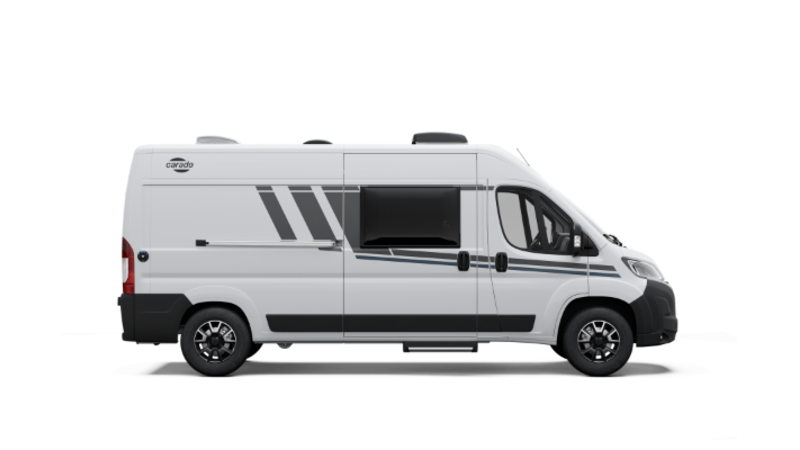

CV600
-
- Price
-
from 49.249 €
- Chassis
- Peugeot Boxer
- Sleeping berths
- 2 - 3
- Length
- 599 cm
- Width from
- 205 cm
- Height
- 258 cm
Important information regarding the selection of your motorhome
When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
1. The technically permissible maximum laden mass…
… is a value set by the manufacturer which the vehicle may not exceed. Carado specifies a layout-related upper limit for the vehicle, which can vary from layout to layout (e.g. 3,500 kg, 4,400 kg). You can find the corresponding specification for each layout in the technical data.2. The mass in running order…
... consists – to put it simply – of the basic vehicle with standard equipment plus a standard weight of 75 kg for the driver. It is legally permissible and possible for the mass in running order of your vehicle to deviate from the nominal value stated in the sales documents. The permissible tolerance is ± 5 %. The permissible range in kilograms is given in brackets after the mass in running order. In order to provide you with full transparency regarding possible weight deviations, Carado weighs each vehicle at the end of the line and informs your trade partner of your vehicle's weighing result for forwarding to you.
Detailed explanations on the subject of mass in running order can be found in the “Legal Information” section.3. The permitted number of seats (including driver)…
… is determined by the manufacturer in what is referred to as the type-approval procedure. This results in what is referred to as the mass of the passengers. For this, a standard weight of 75 kg per passenger (without driver) is calculated.
Detailed explanations on the subject of mass of the passengers can be found in the “Legal Information” section4. The manufacturer-specified mass for optional equipment…
… is a value set by Carado per layout for the maximum mass of optional equipment that can be ordered. This limit is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle load capacity of the vehicles delivered by Carado. If, in exceptional cases, the weighing at the end of the line nevertheless shows that the actual load capacity falls short of the minimum pay-mass due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle.
Detailed explanations on the subject of the effects of the tolerances on the minimum pay-mass and the payload can be found in the “Legal Information” section.5. The additional weight of optional equipment and packages...
... increases the actual mass of the vehicle (= mass in running order plus selected optional equipment) and reduces the pay-mass. The specified value shows the additional weight compared to the standard equipment of the respective layout. The total weight of the selected packages and optional equipment must not exceed the manufacturer-specified mass for optional equipment.Technical data
CV600
Pricing information:
Basic price incl. VAT 49.249 € Chassis and engine:
Chassis Peugeot Boxer Standard engine 2.2 kW (BHP) 103 (140) Tire size 215/70 R 15 CP Vehicle dimensions:
Length | Width | Height (cm) 599 / 205 / 258 Headroom in living area (cm) 190 Wheelbase (cm) 404 Storage underneath rear bed WxHxD 90 x 68 x 138 Weight-related information:
Permitted number of seats (including driver)* 4 Mass in running order (kg)* 2756 (2618 to 2894)* Manufacturer-specified mass for optional equipment (kg)* 397 Technically permissible maximum laden mass (kg)* 3500 Trailer load braked (unbraked) (kg) 2500 (750) Technology:
Fresh water tank capacity total / at driving filling (l) 100 / 20 Waste water tank (l) 90 Sockets 230 V 3 Sockets: USB 2 Gas bottle storage (filling weight in kg) 2 x 11 Interior:
Berths 2 - 3 OPT Bed dimension middle L x B (cm) 185 x 105 - 88 OPT Bed dimension rear L x B (cm) 197 x 157 - 150 Refrigerator volume incl. freezer (l) 84 Miscellaneous:
Heating type Combi 4 Gas a) This is a recommended retail price based on German retail prices. Prices in other countries may differ due to currency conversion and country-specific VAT, fees and import duties. For the latest information, please always enquire with a local dealer about the prices applicable in your country.
* The specified mass in running order is a default value defined in the type-approval procedure. Due to manufacturing tolerances, the actual weighed mass in running order may deviate from the value stated above. Deviations of up to ± 5 % of the mass in running order are legally permissible and possible. The permissible range in kilograms is given in brackets after the mass in running order. The manufacturer-specified mass for optional equipment is a calculated value for each type and layout that [brand] uses to determine the maximum weight available for factory-fitted optional equipment. The limitation of optional equipment is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle load capacity of the vehicles delivered by [brand]. The real weight of your vehicle ex works can only be determined when it is weighed at the end of the line. If, in exceptional cases, the weighing shows that the actual load capacity falls below theminimum pay-mass despite limiting the optional equipment due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle. The technically permissible maximum laden mass of the vehicle and the technically permissible maximum mass on the axle must not be exceeded.-
Base vehicle Peugeot Boxer 3.500 kg | 2.2 | 103 kW | 140 BHP | Euro 6 | 6-speed manual gearbox Front wheel drive Headlights with black frame Daytime running lights | integrated in headlights Electric and heated mirrors Radio aerial integrated in mirror ABS, EBD (electronic brake force distribution), ESP (electronic stability program) ESC (electronic stability control) including ASR (anti-skid control), hill holder (hill start assist), CWA (crosswind assist), trailer stability control and PCB (post-collision braking) Traction+ incl. Hill Descent Control Driver and Passanger airbag Cruise control Manual cab air conditioning Electric operated cab windows and central locking On-board computer incl. exterior temperature display Start & stop function incl. charge booster Disc brakes | rear and front wheel stabilisers | heat convection | tachometer | power steering | height-adjustable headlights | immobiliser | lap and diagonal seat belts Multifunction steering wheel Central cup holder USB socket (A+C) 60 l fuel tank ESC Setup incl. Traction+ 15" steel rims Tyres M+S Camping (snowflake) Fix & Go breakdown kit Radio pre-wiring including speakers Driver and passenger seats swivel Driver and passenger seat with lumbar support Driver and passenger seats with armrests & upholstered covers Height and tilt adjustable driver and front passenger seats Tyre pressure indicator Parking sensors Automatic braking system with pedestrian detection Driver fatigue detection Intelligent speed detection Lane assist Traffic sign recognition Exterior setup 7-year water ingress warranty Double glazed hinged windows with cassette blinds and fly screens Both rear doors with hinged window (incl. roller blind) Roof light 40 x 40 cm over bedroom with fly screen and blinds Rear storage space with 4 integrated lashing rings Flyscreen door Comfort Isofix for 2 seats Spacious storage compartment above driver's cab Bulkhead incl. step for rear double bed Pedestal in lounging area with integrated storage compartment Rear bed with partly slatted frame High quality mattresses with integrated GOODSITE for better sleeping comfort Ergonomically shaped upholstery for improved seating comfort Textile cab blinds Spacious storage compartments and storage options Storage space in rear and sliding doors Spacious wardrobe Furniture in 'Visby Oak' and 'Sand Grey' Floor in 'Glacier Grey' Installations Flexible light bar with individually adjustable LED reading spots Illuminated pedestal in lounging area High-performance, maintenance-free leisure battery (95 Ah AGM) On-board control panel supplies information about filling levels and battery capacity Electric charger for leisure and vehicle battery 12 V / 18 A CEE 230 V external socket with safety device Sockets 3 x 230V | 1 x USB (double) Fresh water tank capacity total 100 l | waste water tank 90 l Heating | gas supply Gas bottle locker for 2 x 11 kg gas bottles Gas heating Combi 4 Gas control valves easily accessible and centrally arranged Kitchen Ergonomically arranged kitchen with spacious work top Large soft-close drawer in kitchen 2 burner gas hob with electric ignition and glass cover Compressor fridge 84 l LED light tube Worktop behind cooker Flexible railing system with 2 hooks Bathroom Fixed washbasin Spacious storage area Cassette toilet C 223 Flush fitting LED spotlights Roof light with fly screen Soft furnishing Soft furnishing in Black Exterior colour Chassis colour Icy-white -
Packs Optic Pack 1 | Painted bumpers Optic Pack 2 | Alloy wheels Basic Pack Base vehicle Peugeot Boxer 3.500 kg | 2.2 | 103 kW | 140 BHP Euro 6 | 8-speed automatic gearbox 90 l fuel tank Exterior setup Rear hinged window (incl. blackout blind and flyscreen) Insulated and heated waste water tank Bike rack for 2 bikes (Black) Comfort Wooden duckboard for the shower tray Folding cab blinds Bed conversion for seating area Special coloured overhead storage in Visby Oak Installations Second AGM leisure battery 95 Ah Heating Combi 6 E (with el. heating element) | digital control panel Pre-cabling for reversing camera Pre-cabling for solar panel TV pre-cabling | TV holder USB-port in the light rail Soft furnishing Soft furnishing in White Exterior colour Chassis colour Iron Grey metallic Chassis colour Artense Grey metallic Original Accessories Smart Battery System, set of 2, 50 AH Smart Battery System 5-pack 125 AH ClearliQ travel water filter Exterior insulated screen cover for semi-integrated motorhomes, Camper Vans and Vans Pop-top roof insulation Insulation for the rear doors Mosquito netting at the rear of the Camper Van Camper Van kitchen pullout Leg rest Children's bed Passenger-side door safe for the Fiat Ducato Driver's cabin carpet KITT Backrack+ (LH side) Backrack+ (RH side) Backrack+ Number and Light Bar Backrack+ Number and light Bar ≤ 6mNumber and light bar ≤ 6m Backrack+ Bike Carrier Swing Backrack+ Bike Carrier Shuttle (1 holder) Backrack+ Bike Carrier Shuttle (1 holder) Backrack+ Mini Rack Backrack+ Wheel Holder Light Chassis Backrack+ Wheel Holder Maxi Chassis Backrack+ Gear Carrier Backrack+ Canister Fuel Backrack+ Canister Water Backrack+ Combo Pack Backrack+ Snap Box Black Backrack+ Snap Box Silver Backrack+ Adventure Plate Backrack+ Level Pack incl. chocks Bull Bar Fiat (equivalent model)
-
- Price
-
from 56.299 €
- Chassis
- Fiat Ducato
- Sleeping berths
- 2 - 4
- Length
- 599 cm
- Width from
- 205 cm
- Height
- 261 cm
Important information regarding the selection of your motorhome
When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
1. The technically permissible maximum laden mass…
… is a value set by the manufacturer which the vehicle may not exceed. Carado specifies a layout-related upper limit for the vehicle, which can vary from layout to layout (e.g. 3,500 kg, 4,400 kg). You can find the corresponding specification for each layout in the technical data.2. The mass in running order…
... consists – to put it simply – of the basic vehicle with standard equipment plus a standard weight of 75 kg for the driver. It is legally permissible and possible for the mass in running order of your vehicle to deviate from the nominal value stated in the sales documents. The permissible tolerance is ± 5 %. The permissible range in kilograms is given in brackets after the mass in running order. In order to provide you with full transparency regarding possible weight deviations, Carado weighs each vehicle at the end of the line and informs your trade partner of your vehicle's weighing result for forwarding to you.
Detailed explanations on the subject of mass in running order can be found in the “Legal Information” section.3. The permitted number of seats (including driver)…
… is determined by the manufacturer in what is referred to as the type-approval procedure. This results in what is referred to as the mass of the passengers. For this, a standard weight of 75 kg per passenger (without driver) is calculated.
Detailed explanations on the subject of mass of the passengers can be found in the “Legal Information” section4. The manufacturer-specified mass for optional equipment…
… is a value set by Carado per layout for the maximum mass of optional equipment that can be ordered. This limit is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle load capacity of the vehicles delivered by Carado. If, in exceptional cases, the weighing at the end of the line nevertheless shows that the actual load capacity falls short of the minimum pay-mass due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle.
Detailed explanations on the subject of the effects of the tolerances on the minimum pay-mass and the payload can be found in the “Legal Information” section.5. The additional weight of optional equipment and packages...
... increases the actual mass of the vehicle (= mass in running order plus selected optional equipment) and reduces the pay-mass. The specified value shows the additional weight compared to the standard equipment of the respective layout. The total weight of the selected packages and optional equipment must not exceed the manufacturer-specified mass for optional equipment.Technical data

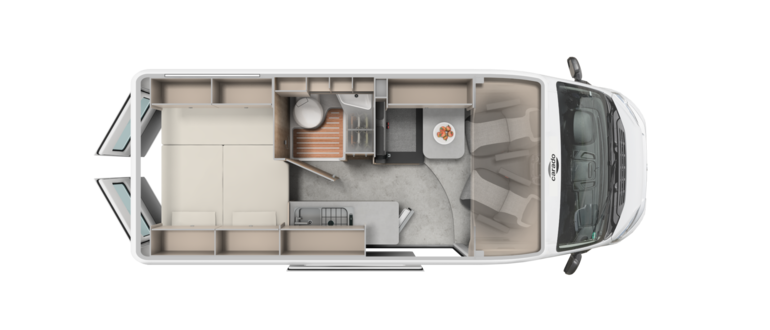

CV600 PRO
Pricing information:
Basic price incl. VAT 56.299 € Chassis and engine:
Chassis Fiat Ducato Standard engine 2.2 kW (BHP) 103 (140) Tire size 225/75 R 16 C Vehicle dimensions:
Length | Width | Height (cm) 599 / 205 / 261 Headroom in living area (cm) 190 Wheelbase (cm) 404 Storage underneath rear bed WxHxD 90 x 68 x 138 Weight-related information:
Permitted number of seats (including driver)* 4 Mass in running order (kg)* 2856 (2713 to 2999)* Manufacturer-specified mass for optional equipment (kg)* 297 Technically permissible maximum laden mass (kg)* 3500 Trailer load braked (unbraked) (kg) 2500 (750) Technology:
Fresh water tank capacity total / at driving filling (l) 100 / 20 Waste water tank (l) 90 Sockets 230 V 3 Sockets: USB 2 Gas bottle storage (filling weight in kg) 2 x 11 Interior:
Berths 2 - 4 OPT Bed dimension: pop-top roof (cm) 206 x 143 OPT Bed dimension middle L x B (cm) 185 x 105 - 88 OPT Bed dimension rear L x B (cm) 197 x 157 - 150 Refrigerator volume incl. freezer (l) 84 Miscellaneous:
Heating type Combi 4 Gas a) This is a recommended retail price based on German retail prices. Prices in other countries may differ due to currency conversion and country-specific VAT, fees and import duties. For the latest information, please always enquire with a local dealer about the prices applicable in your country.
* The specified mass in running order is a default value defined in the type-approval procedure. Due to manufacturing tolerances, the actual weighed mass in running order may deviate from the value stated above. Deviations of up to ± 5 % of the mass in running order are legally permissible and possible. The permissible range in kilograms is given in brackets after the mass in running order. The manufacturer-specified mass for optional equipment is a calculated value for each type and layout that [brand] uses to determine the maximum weight available for factory-fitted optional equipment. The limitation of optional equipment is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle load capacity of the vehicles delivered by [brand]. The real weight of your vehicle ex works can only be determined when it is weighed at the end of the line. If, in exceptional cases, the weighing shows that the actual load capacity falls below theminimum pay-mass despite limiting the optional equipment due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle. The technically permissible maximum laden mass of the vehicle and the technically permissible maximum mass on the axle must not be exceeded.-
Packs Basic Pack Optic Pack 1 | Painted bumpers Optic Pack 2 | Alloy wheels pro Pack CV600 & CV601 & CV602 pro Base vehicle Fiat Ducato 3.500 kg | 2.2 | 103 kW | 140 BHP Euro 6 | 6-speed manual gearbox Cruise control ABS, EBD (electronic brake force distribution), ESP (electronic stability program) ESC (electronic stability control) including ASR (anti-skid control), hill holder (hill start assist), CWA (crosswind assist), trailer stability control and PCB (post-collision braking) Traction+ incl. hill descent assistant ESC Setup Start & Stop function incl. charge booster Driver and Passanger airbag Electric operated cab windows and central locking Radio pre-wiring including speakers On-board computer incl. exterior temperature display USB socket (A+C) Multifunction steering wheel Central cup holder Radio aerial integrated in mirror Electric and heated mirrors Fix & Go breakdown kit Front wheel drive Disc brakes | rear and front wheel stabilisers| heat convection | tachometer | power steering, height-adjustable headlights | immobiliser | lap and diagonal seat belts Tyres M+S Camping (snowflake) Headlights with black frame Daytime running lights integrated in headlights Driver and passenger seats in matching colours Captain chairs with covers Height and tilt adjustable driver and front passenger seats Swiveling driver and passenger seats Driver and passenger seat with lumbar support Parking sensors Automatic braking system with pedestrian detection Fatigue detection Intelligent speed detection Lane assist Traffic sign recognition Tyre pressure indicator Exterior setup 7-year water ingress warranty Double glazed hinged windows with cassette blinds and fly screens Both rear doors with hinged window (incl. roller blind) Roof light 40 x 40 cm over bedroom with fly screen and blinds Rear storage space with 4 integrated lashing rings Flyscreen door Comfort Isofix for 2 seats Spacious storage compartment above driver's cab Bulkhead incl. step for rear double bed Pedestal in lounging area with integrated storage compartment Rear bed with partly slatted frame High quality mattresses with integrated GOODSITE for better sleeping comfort Ergonomically shaped upholstery for improved seating comfort Spacious storage compartments and storage options Storage space in rear and sliding doors Spacious wardrobe Furniture in 'Visby Oak' and 'Sand Grey' Floor in 'Glacier Grey' Installations Flexible light bar with individually adjustable LED reading spots Illuminated pedestal in lounging area Recessed LED spotlights in the living room and bathroom area High-performance, maintenance-free leisure battery (95 Ah AGM) On-board control panel supplies information about filling levels and battery capacity Electric charger for leisure and vehicle battery 12 V / 18 A CEE 230 V external socket with safety device Sockets 3 x 230V | 1 x USB (double) Fresh water tank capacity total 100 l | waste water tank 90 l Heating | gas supply Gas bottle locker for 2 x 11 kg gas bottles Gas heating Combi 4 Gas control valves easily accessible and centrally arranged Kitchen Ergonomically arranged kitchen with spacious work top Large soft-close drawer in kitchen 2 burner gas hob with electric ignition and glass cover Worktop behind cooker Compressor fridge 84 l LED light tube Flexible railing system with 2 hooks Bathroom Fixed washbasin Cassette toilet C 223 Spacious storage area Flush fitting LED spotlights Roof light with fly screen Soft furnishing Soft furnishing in Black Exterior colour Chassis colour white -
Packs Chassis Pack ACC Pack Co-Driver Pack Fiat 7" Infotainment Pack 10“ Infotainment Pack Base vehicle Fiat Ducato 3.500 kg | 2.2 | 103 kW | 140 BHP Euro 6 | 8-speed automatic gearbox Fiat Ducato 3.500 kg | 2.2 | 132 kW | 180 BHP Euro 6 | 8-speed automatic gearbox Fiat Ducato Maxi Chassis 3.500 kg | 2.2 | 103 kW | 140 BHP Euro 6 | 6-speed manual gearbox Fiat Ducato Maxi Chassis 3.500 kg | 2.2 | 103 kW | 140 BHP Euro 6 | 8-speed automatic gearbox Fiat Ducato Maxi Chassis 3.500 kg | 2.2 | 132 kW | 180 BHP Euro 6 | 8-speed automatic gearbox Fully LED headlights incl. wiping indicators and LED daytime running lights Electrical preparation for trailer coupling Spare wheel incl. holder and car jack instead of Fix & Go kit Digital display and smartphone charging function Exterior setup Black pop-top roof Insulated and heated waste water tank Bike rack for 2 bikes (Black) Framed windows Comfort Bed conversion for seating area Wooden duckboard for the shower tray Special coloured overhead storage in Visby Oak Installations Caramatic SafeDrive PLUS Diesel heating Combi 4 incl. integrated altitude pressure sensor and digital control panel Heating Combi 6 E (with el. heating element) | digital control panel Combi 6 DE diesel heater (with electric heating element), including integrated altitude pressure sensor | digital control panel Pre-cabling for reversing camera Pre-cabling for solar panel TV pre-cabling | TV holder USB-port in the light rail Mobile internet (WiFi | LTE antenna incl. router) Solar panel 100 watt incl. MPPT controller Lithium battery 104 Ah instead of AGM 95 Ah Additional 104 Ah lithium battery Soft furnishing Soft furnishing in White Soft furnishing in Grey Exterior colour Chassis colour Artense Grey metallic Chassis colour Iron Grey metallic Chassis colour Expedition Grey Chassis colour Lanzarote Grey Original Accessories Smart Battery System, set of 2, 50 AH Smart Battery System 5-pack 125 AH ClearliQ travel water filter Exterior insulated screen cover for semi-integrated motorhomes, Camper Vans and Vans Pop-top roof insulation Insulation for the rear doors Mosquito netting at the rear of the Camper Van Camper Van kitchen pullout Leg rest Children's bed Passenger-side door safe for the Fiat Ducato Driver's cabin carpet KITT Backrack+ (LH side) Backrack+ (RH side) Backrack+ Number and Light Bar Backrack+ Number and light Bar ≤ 6mNumber and light bar ≤ 6m Backrack+ Bike Carrier Swing Backrack+ Bike Carrier Shuttle (1 holder) Backrack+ Bike Carrier Shuttle (1 holder) Backrack+ Mini Rack Backrack+ Wheel Holder Light Chassis Backrack+ Wheel Holder Maxi Chassis Backrack+ Gear Carrier Backrack+ Canister Fuel Backrack+ Canister Water Backrack+ Combo Pack Backrack+ Snap Box Black Backrack+ Snap Box Silver Backrack+ Adventure Plate Backrack+ Level Pack incl. chocks Bull Bar Fiat (equivalent model) -
Basic Pack Shower equipment Wide entrance step Roof light over lounge area 70 x 50 cm Rotating plate for table extension in seating area Window in bathroom Clothes rail in bathroom Optic Pack 1 | Painted bumpers Black glossy skid plate Painted bumper Fog lights Optic Pack 2 | Alloy wheels Instrument panel with applications (Techno-Trim) Leather steering wheel and gear knob in leather trim 16" alloy wheels two-colour pro Pack CV600 & CV601 & CV602 pro Pro decals 90 l fuel tank Folding cab blinds
-
- Price
-
from 60.899 €
- Chassis
- Fiat Ducato
- Sleeping berths
- 2 - 4
- Length
- 599 cm
- Width from
- 205 cm
- Height
- 261 cm
Important information regarding the selection of your motorhome
When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
1. The technically permissible maximum laden mass…
… is a value set by the manufacturer which the vehicle may not exceed. Carado specifies a layout-related upper limit for the vehicle, which can vary from layout to layout (e.g. 3,500 kg, 4,400 kg). You can find the corresponding specification for each layout in the technical data.2. The mass in running order…
... consists – to put it simply – of the basic vehicle with standard equipment plus a standard weight of 75 kg for the driver. It is legally permissible and possible for the mass in running order of your vehicle to deviate from the nominal value stated in the sales documents. The permissible tolerance is ± 5 %. The permissible range in kilograms is given in brackets after the mass in running order. In order to provide you with full transparency regarding possible weight deviations, Carado weighs each vehicle at the end of the line and informs your trade partner of your vehicle's weighing result for forwarding to you.
Detailed explanations on the subject of mass in running order can be found in the “Legal Information” section.3. The permitted number of seats (including driver)…
… is determined by the manufacturer in what is referred to as the type-approval procedure. This results in what is referred to as the mass of the passengers. For this, a standard weight of 75 kg per passenger (without driver) is calculated.
Detailed explanations on the subject of mass of the passengers can be found in the “Legal Information” section4. The manufacturer-specified mass for optional equipment…
… is a value set by Carado per layout for the maximum mass of optional equipment that can be ordered. This limit is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle load capacity of the vehicles delivered by Carado. If, in exceptional cases, the weighing at the end of the line nevertheless shows that the actual load capacity falls short of the minimum pay-mass due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle.
Detailed explanations on the subject of the effects of the tolerances on the minimum pay-mass and the payload can be found in the “Legal Information” section.5. The additional weight of optional equipment and packages...
... increases the actual mass of the vehicle (= mass in running order plus selected optional equipment) and reduces the pay-mass. The specified value shows the additional weight compared to the standard equipment of the respective layout. The total weight of the selected packages and optional equipment must not exceed the manufacturer-specified mass for optional equipment.Technical data

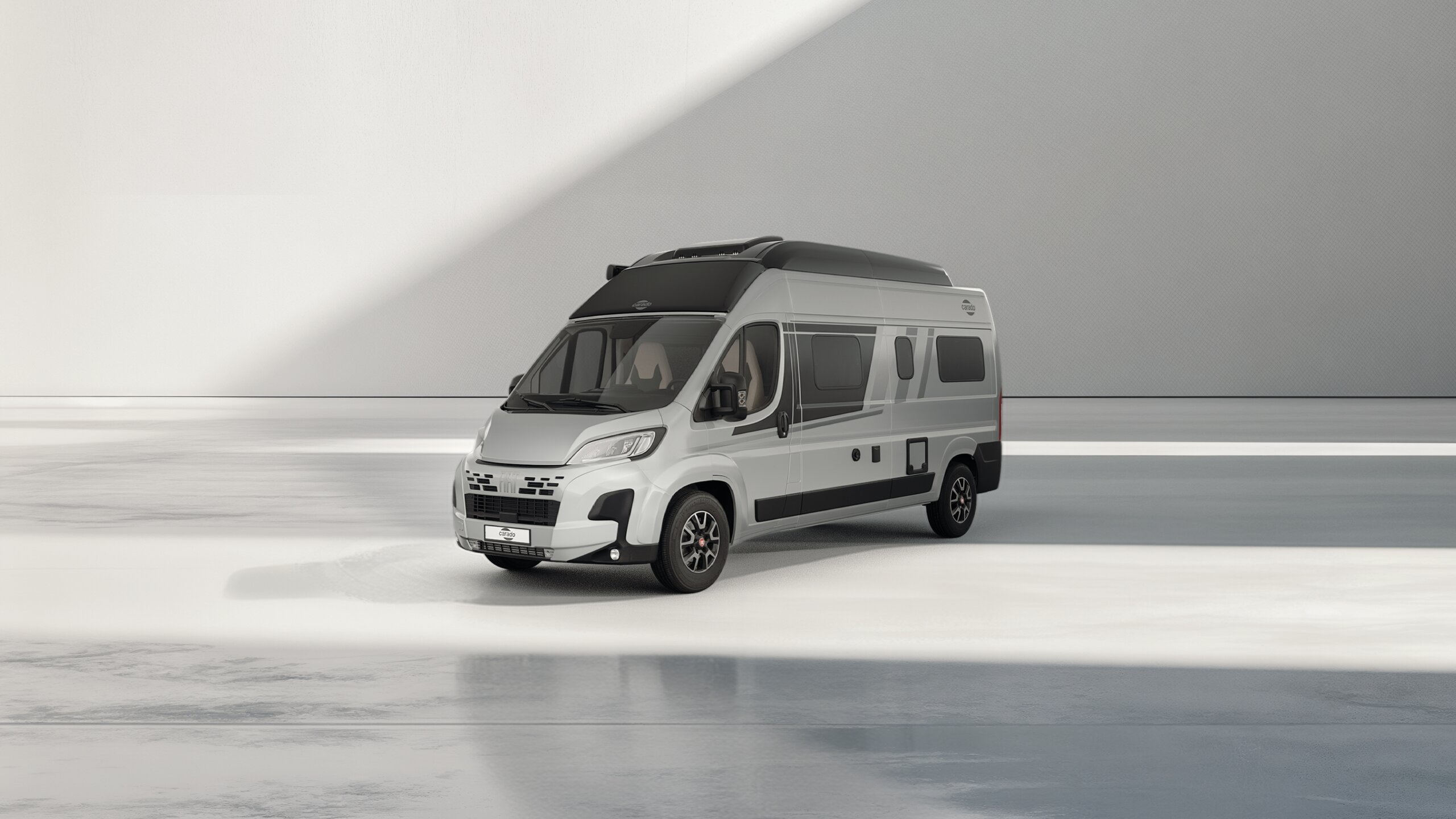

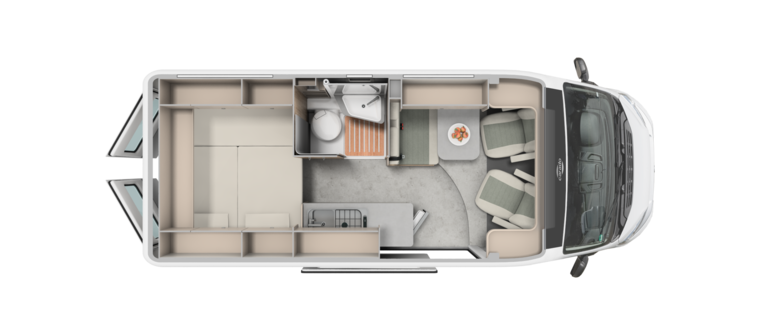

CV600 PRO+
Pricing information:
Basic price incl. VAT 60.899 € Chassis and engine:
Chassis Fiat Ducato Standard engine 2.2 kW (BHP) 103 (140) Tire size 225/75 R 16 C Vehicle dimensions:
Length | Width | Height (cm) 599 / 205 / 261 Headroom in living area (cm) 190 Wheelbase (cm) 404 Storage underneath rear bed WxHxD 90 x 68 x 138 Weight-related information:
Permitted number of seats (including driver)* 4 Mass in running order (kg)* 2869 (2726 to 3012)* Manufacturer-specified mass for optional equipment (kg)* 284 Technically permissible maximum laden mass (kg)* 3500 Trailer load braked (unbraked) (kg) 2500 (750) Technology:
Fresh water tank capacity total / at driving filling (l) 100 / 20 Waste water tank (l) 90 Sockets 230 V 3 Sockets: USB 2 Gas bottle storage (filling weight in kg) 2 x 11 Interior:
Berths 2 - 4 OPT Bed dimension: pop-top roof (cm) 206 x 143 OPT Bed dimension middle L x B (cm) 185 x 105 - 88 OPT Bed dimension rear L x B (cm) 197 x 157 - 150 Refrigerator volume incl. freezer (l) 84 Miscellaneous:
Heating type Combi 4 Gas a) This is a recommended retail price based on German retail prices. Prices in other countries may differ due to currency conversion and country-specific VAT, fees and import duties. For the latest information, please always enquire with a local dealer about the prices applicable in your country.
* The specified mass in running order is a default value defined in the type-approval procedure. Due to manufacturing tolerances, the actual weighed mass in running order may deviate from the value stated above. Deviations of up to ± 5 % of the mass in running order are legally permissible and possible. The permissible range in kilograms is given in brackets after the mass in running order. The manufacturer-specified mass for optional equipment is a calculated value for each type and layout that [brand] uses to determine the maximum weight available for factory-fitted optional equipment. The limitation of optional equipment is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle load capacity of the vehicles delivered by [brand]. The real weight of your vehicle ex works can only be determined when it is weighed at the end of the line. If, in exceptional cases, the weighing shows that the actual load capacity falls below theminimum pay-mass despite limiting the optional equipment due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle. The technically permissible maximum laden mass of the vehicle and the technically permissible maximum mass on the axle must not be exceeded.-
Packs Basic Pack Optic Pack 1 | Painted bumpers Optic Pack 2 | Alloy wheels pro+ Pack CV600 pro+ Base vehicle Fiat Ducato 3.500 kg | 2.2 | 103 kW | 140 BHP Euro 6 | 6-speed manual gearbox Cruise control ABS, EBD (electronic brake force distribution), ESP (electronic stability program) ESC (electronic stability control) including ASR (anti-skid control), hill holder (hill start assist), CWA (crosswind assist), trailer stability control and PCB (post-collision braking) Traction+ incl. hill descent assistant ESC Setup Start & Stop function incl. charge booster Driver and Passanger airbag Electric operated cab windows and central locking Radio pre-wiring including speakers On-board computer incl. exterior temperature display USB socket (A+C) Multifunction steering wheel Central cup holder Radio aerial integrated in mirror Electric and heated mirrors Fix & Go breakdown kit Front wheel drive Disc brakes | rear and front wheel stabilisers| heat convection | tachometer | power steering, height-adjustable headlights | immobiliser | lap and diagonal seat belts Tyres M+S Camping (snowflake) Headlights with black frame Daytime running lights integrated in headlights Driver and passenger seats in matching colours Captain chairs with covers Height and tilt adjustable driver and front passenger seats Swiveling driver and passenger seats Driver and passenger seat with lumbar support Parking sensors Automatic braking system with pedestrian detection Fatigue detection Intelligent speed detection Lane assist Traffic sign recognition Tyre pressure indicator Exterior setup 7-year water ingress warranty Double glazed hinged windows with cassette blinds and fly screens Both rear doors with hinged window (incl. roller blind) Roof light 40 x 40 cm over bedroom with fly screen and blinds Rear storage space with 4 integrated lashing rings Flyscreen door Framed windows Comfort Isofix for 2 seats Bulkhead incl. step for rear double bed Pedestal in lounging area with integrated storage compartment Rear bed with partly slatted frame High quality mattresses with integrated GOODSITE for better sleeping comfort Ergonomically shaped upholstery for improved seating comfort Spacious storage compartments and storage options Storage space in rear and sliding doors Spacious wardrobe Furniture in 'Visby Oak' and 'Sand Grey' Floor in 'Glacier Grey' Installations Flexible light bar with individually adjustable LED reading spots Illuminated pedestal in lounging area Recessed LED spotlights in the living room and bathroom area Lithium battery 104 Ah instead of AGM 95 Ah On-board control panel supplies information about filling levels and battery capacity Electric charger for leisure and vehicle battery 12 V / 18 A CEE 230 V external socket with safety device Sockets 3 x 230V | 1 x USB (double) Fresh water tank capacity total 100 l | waste water tank 90 l Heating | gas supply Gas bottle locker for 2 x 11 kg gas bottles Gas heating Combi 4 Gas control valves easily accessible and centrally arranged Kitchen Ergonomically arranged kitchen with spacious work top Large soft-close drawer in kitchen 2 burner gas hob with electric ignition and glass cover Worktop behind cooker Compressor fridge 84 l LED light tube Flexible railing system with 2 hooks Bathroom Swivelling bathroom Fixed washbasin Cassette toilet C 223 Spacious storage area Flush fitting LED spotlights Roof light with fly screen Exterior colour Chassis colour Artense Grey metallic -
Packs Chassis Pack ACC Pack Co-Driver Pack Fiat 7" Infotainment Pack 10“ Infotainment Pack Base vehicle Fiat Ducato 3.500 kg | 2.2 | 103 kW | 140 BHP Euro 6 | 8-speed automatic gearbox Fiat Ducato 3.500 kg | 2.2 | 132 kW | 180 BHP Euro 6 | 8-speed automatic gearbox Fiat Ducato Maxi Chassis 3.500 kg | 2.2 | 103 kW | 140 BHP Euro 6 | 6-speed manual gearbox Fiat Ducato Maxi Chassis 3.500 kg | 2.2 | 103 kW | 140 BHP Euro 6 | 8-speed automatic gearbox Fiat Ducato Maxi Chassis 3.500 kg | 2.2 | 132 kW | 180 BHP Euro 6 | 8-speed automatic gearbox Fully LED headlights incl. wiping indicators and LED daytime running lights Electrical preparation for trailer coupling Spare wheel incl. holder and car jack instead of Fix & Go kit Digital display and smartphone charging function Exterior setup Black pop-top roof Insulated and heated waste water tank Bike rack for 2 bikes (Black) Comfort Bed conversion for seating area Wooden duckboard for the shower tray Special coloured overhead storage in Visby Oak Installations Caramatic SafeDrive PLUS Diesel heating Combi 4 incl. integrated altitude pressure sensor and digital control panel Heating Combi 6 E (with el. heating element) | digital control panel Combi 6 DE diesel heater (with electric heating element), including integrated altitude pressure sensor | digital control panel Pre-cabling for reversing camera Pre-cabling for solar panel TV pre-cabling | TV holder USB-port in the light rail Mobile internet (WiFi | LTE antenna incl. router) Solar panel 100 watt incl. MPPT controller Additional 104 Ah lithium battery Soft furnishing Soft furnishing in White Soft furnishing in Grey Exterior colour Chassis colour Iron Grey metallic Chassis colour Expedition Grey Chassis colour Lanzarote Grey Original Accessories ClearliQ travel water filter Exterior insulated screen cover for semi-integrated motorhomes, Camper Vans and Vans Pop-top roof insulation Insulation for the rear doors Mosquito netting at the rear of the Camper Van Camper Van kitchen pullout Leg rest Children's bed Passenger-side door safe for the Fiat Ducato Driver's cabin carpet KITT Backrack+ (LH side) Backrack+ (RH side) Backrack+ Number and Light Bar Backrack+ Number and light Bar ≤ 6mNumber and light bar ≤ 6m Backrack+ Bike Carrier Swing Backrack+ Bike Carrier Shuttle (1 holder) Backrack+ Bike Carrier Shuttle (1 holder) Backrack+ Mini Rack Backrack+ Wheel Holder Light Chassis Backrack+ Wheel Holder Maxi Chassis Backrack+ Gear Carrier Backrack+ Canister Fuel Backrack+ Canister Water Backrack+ Combo Pack Backrack+ Snap Box Black Backrack+ Snap Box Silver Backrack+ Adventure Plate Backrack+ Level Pack incl. chocks Bull Bar Fiat (equivalent model) -
Basic Pack Window in bathroom Wide entrance step Roof light over lounge area 70 x 50 cm Rotating plate for table extension in seating area Shower equipment Clothes rail in bathroom Optic Pack 1 | Painted bumpers Black glossy skid plate Painted bumper Fog lights Optic Pack 2 | Alloy wheels Instrument panel with applications (Techno-Trim) Leather steering wheel and gear knob in leather trim 16" alloy wheels two-colour pro+ Pack CV600 pro+ Soft furnishing Forest Sand Wraparound overhead cabinet in rear Carado 20 Years decals 90 l fuel tank Framed windows Folding cab blinds Panoramic window above driver's and passenger seat LED lighting integrated above the roof cabinets Lithium battery 104 Ah instead of AGM 95 Ah

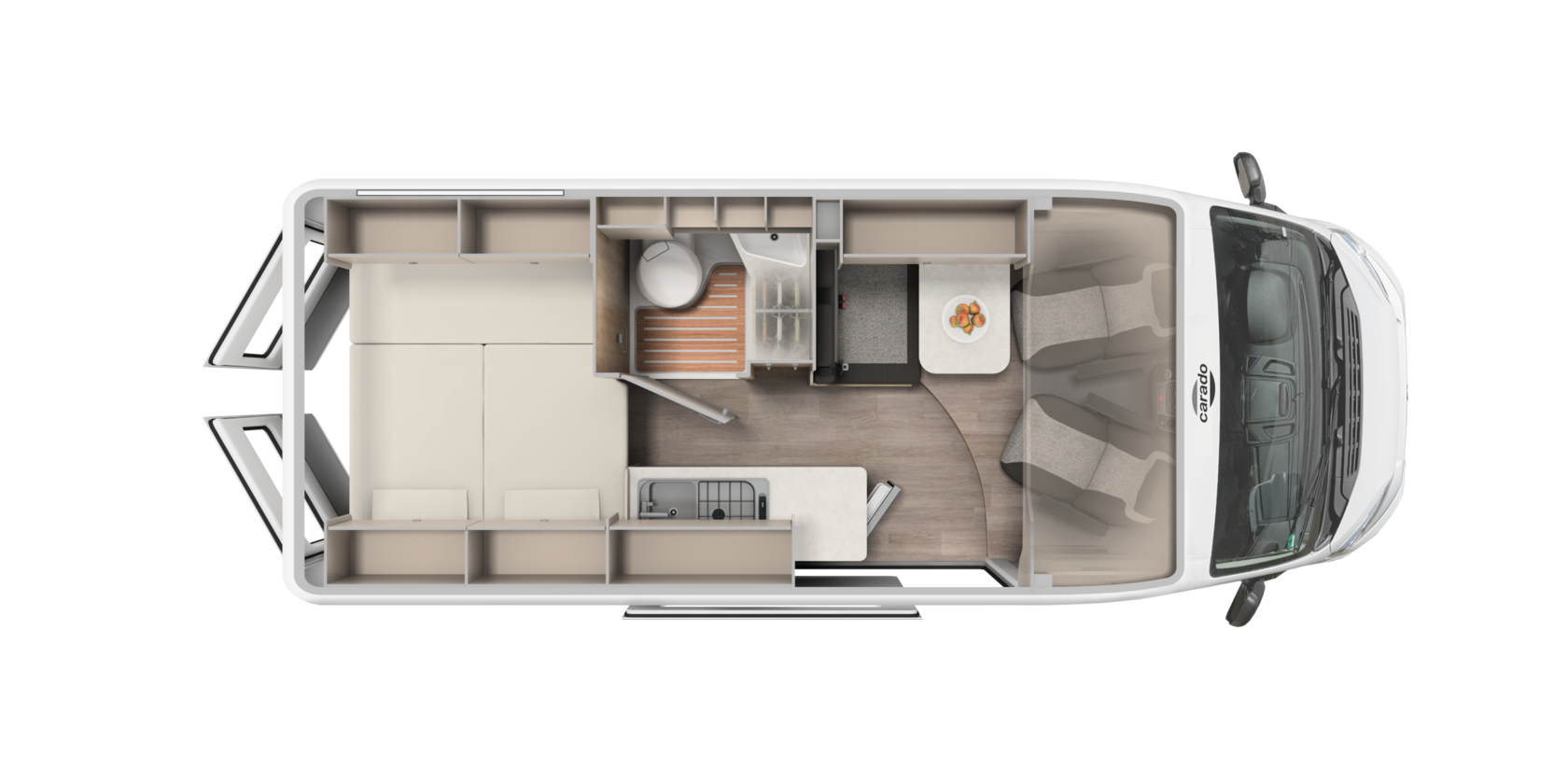

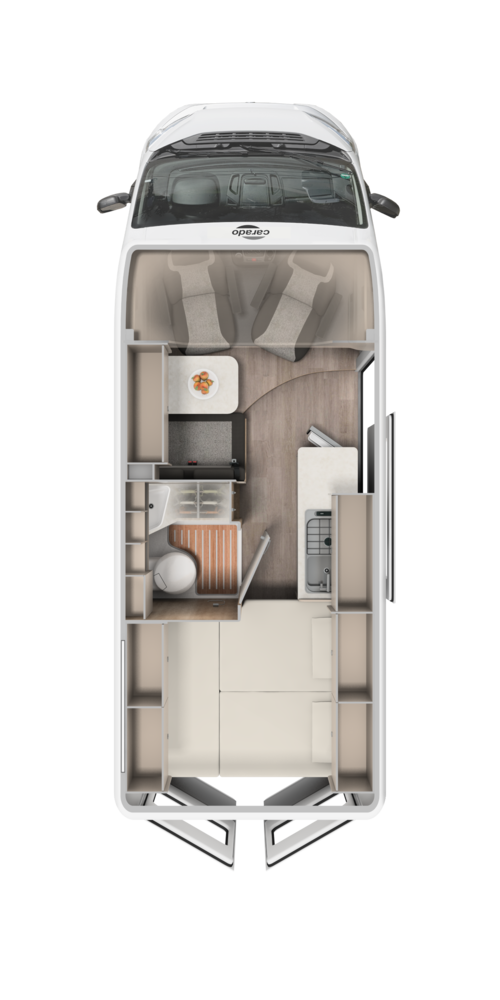

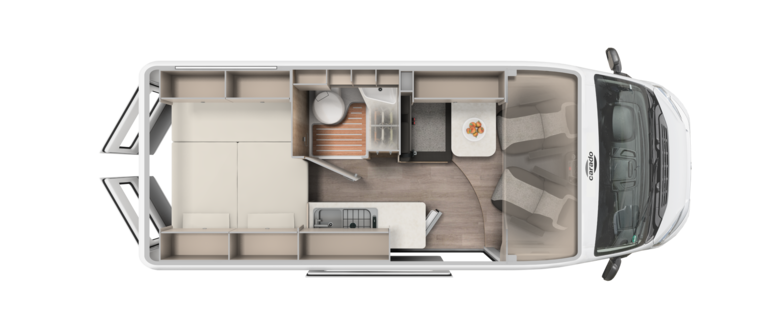

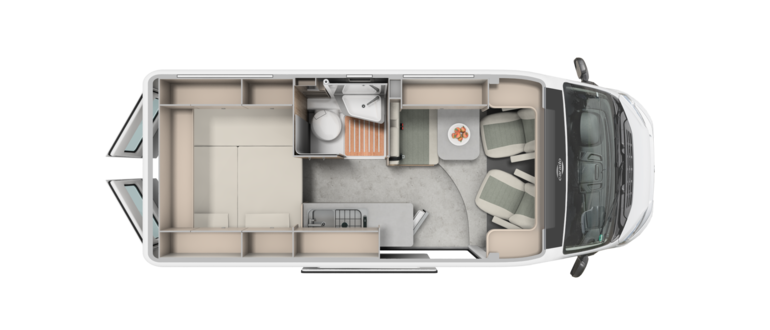

A floor plan full of ideas.

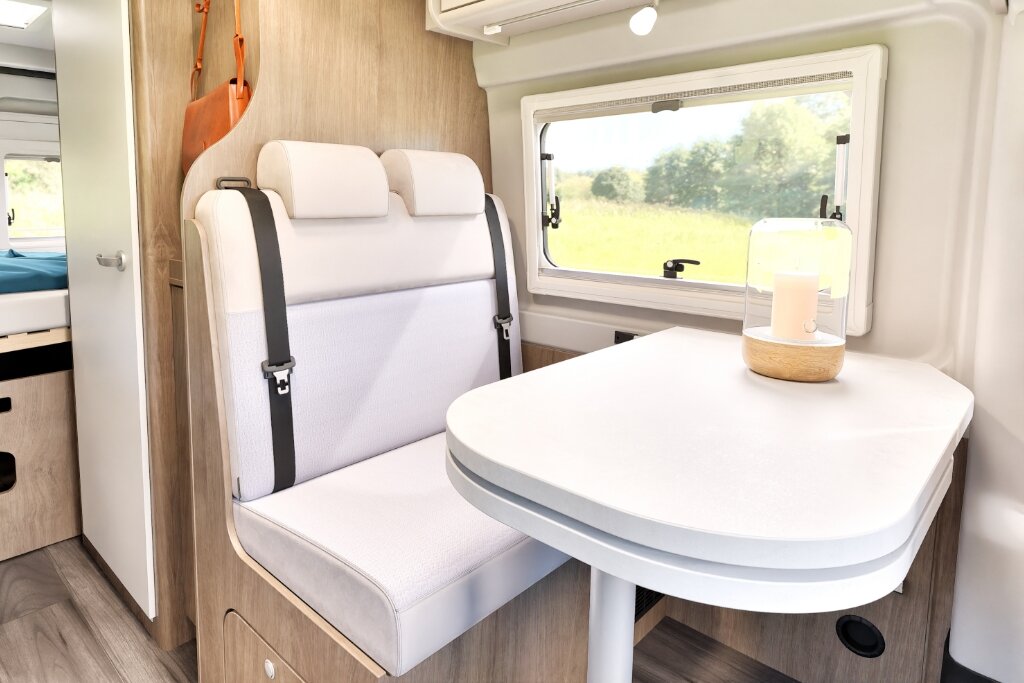

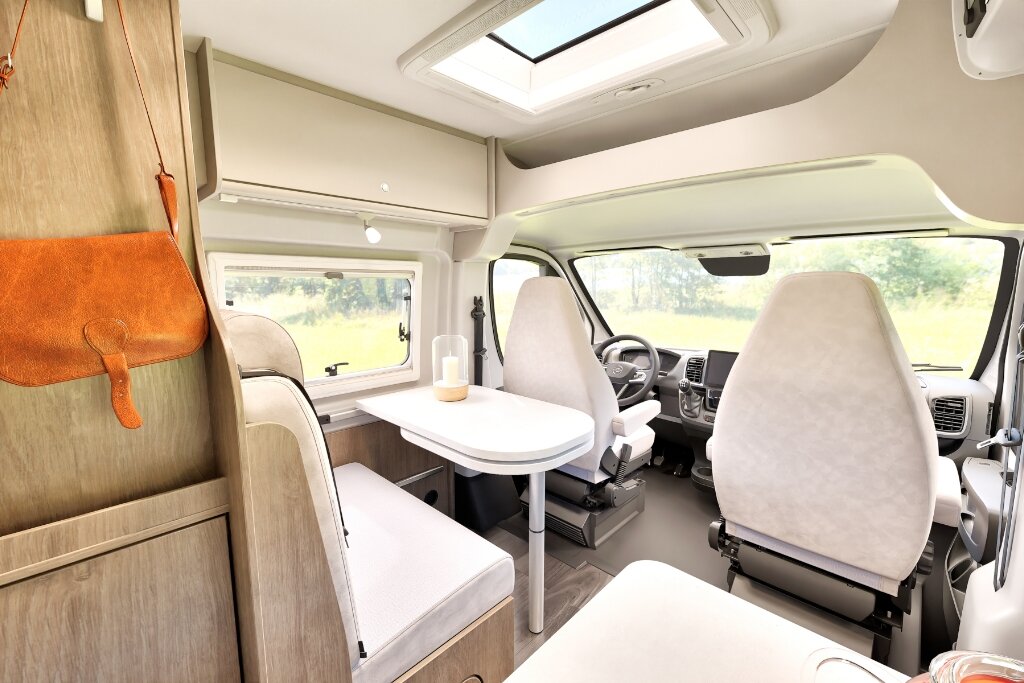

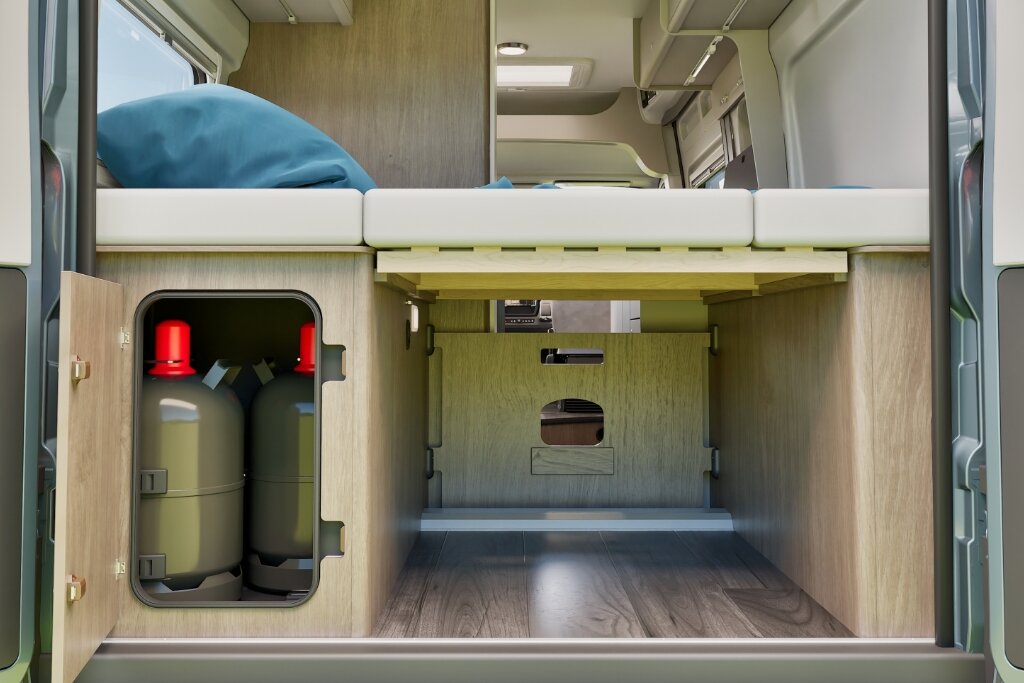

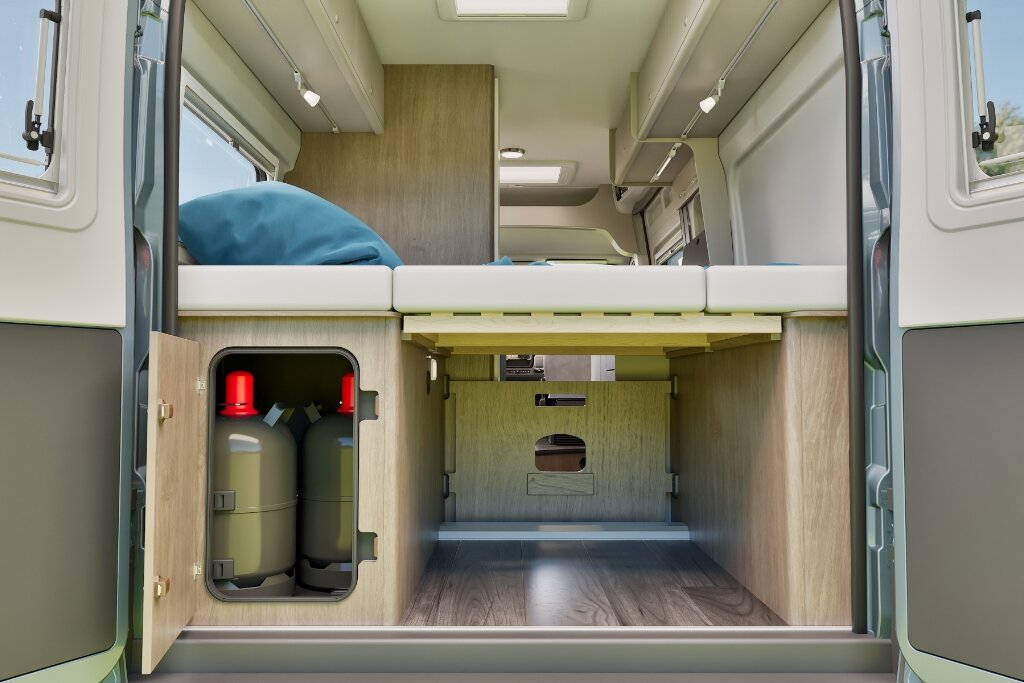

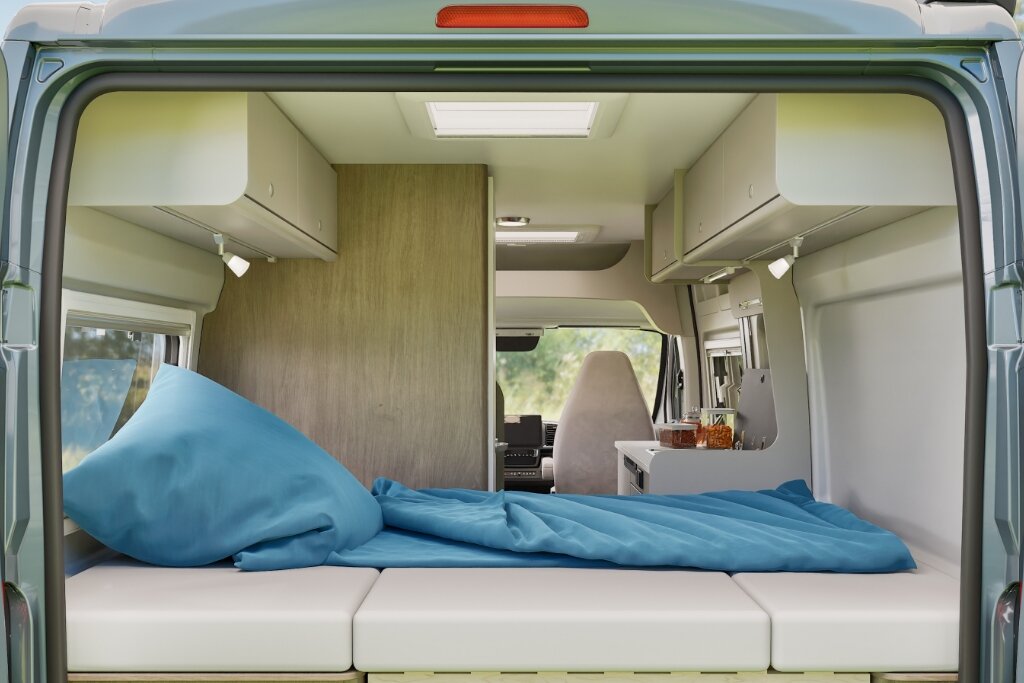

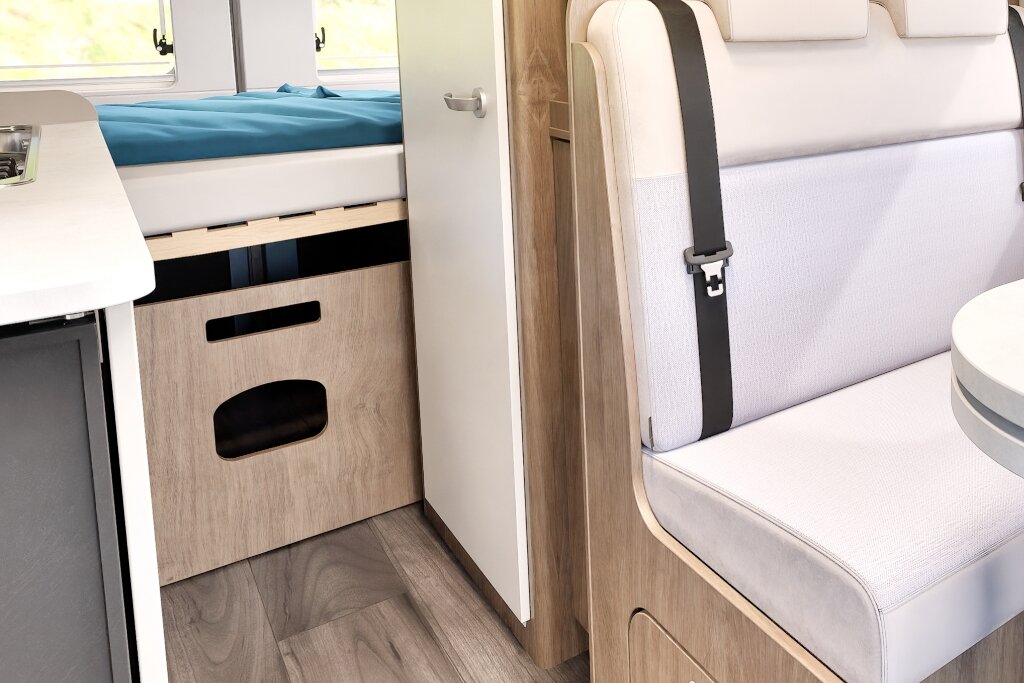

At the rear, there is a 157 cm wide double bed with high-quality mattresses, which is even wider than in the CV540. Optionally, the seating area can be converted into a third sleeping space.

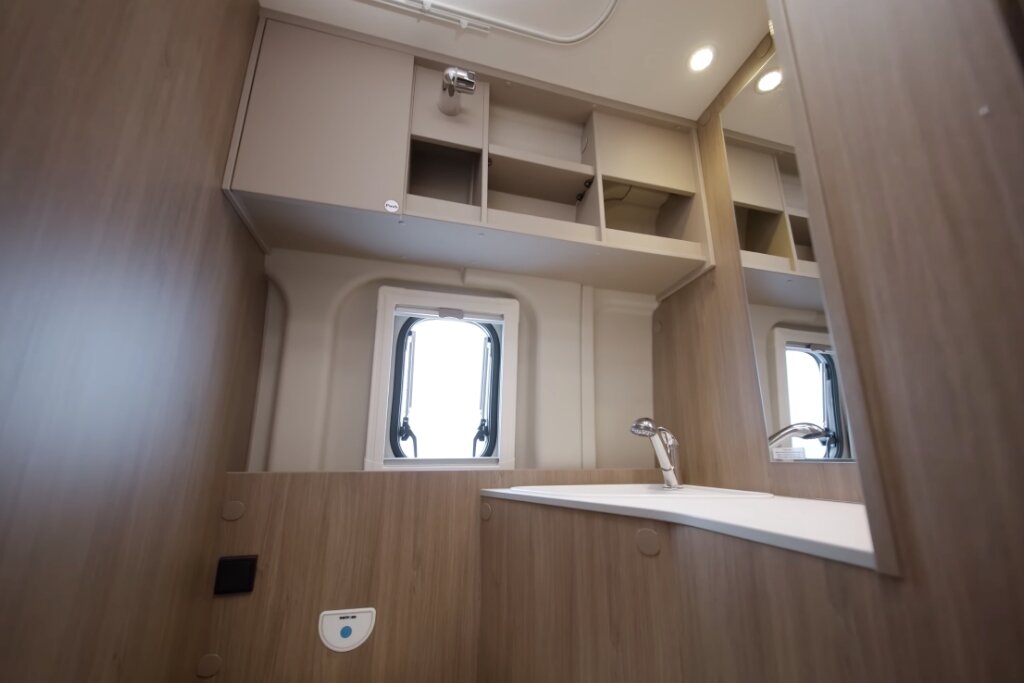

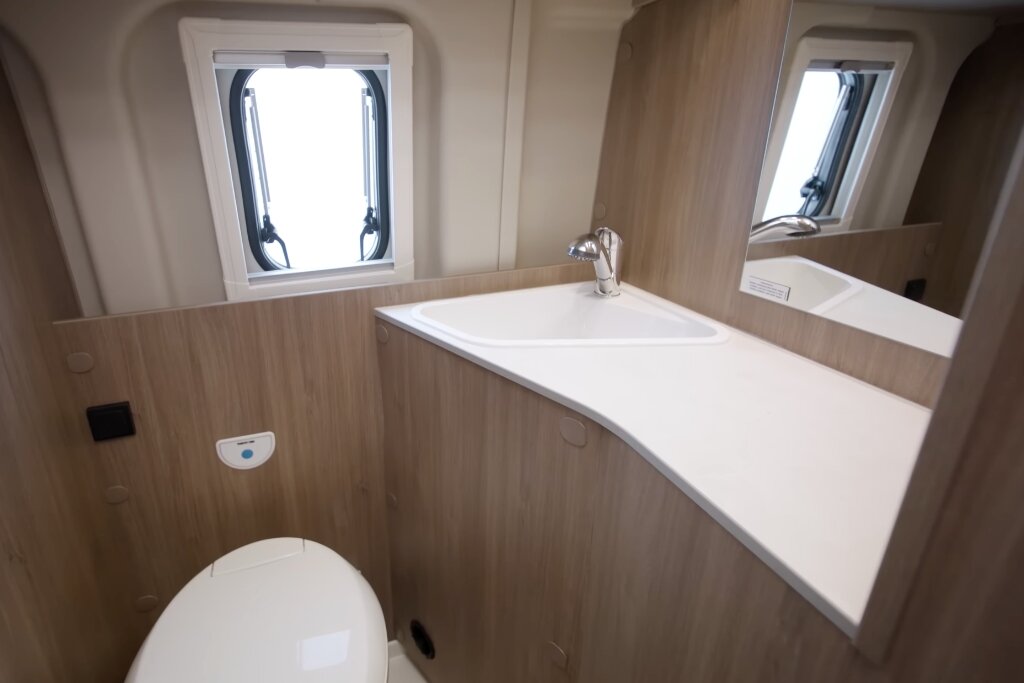

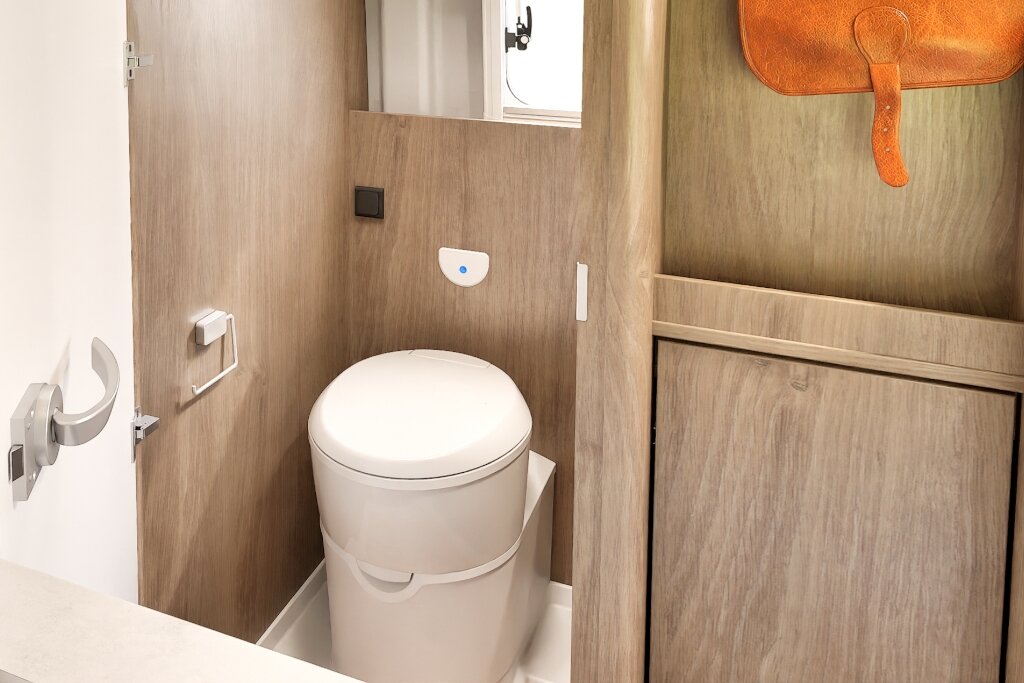

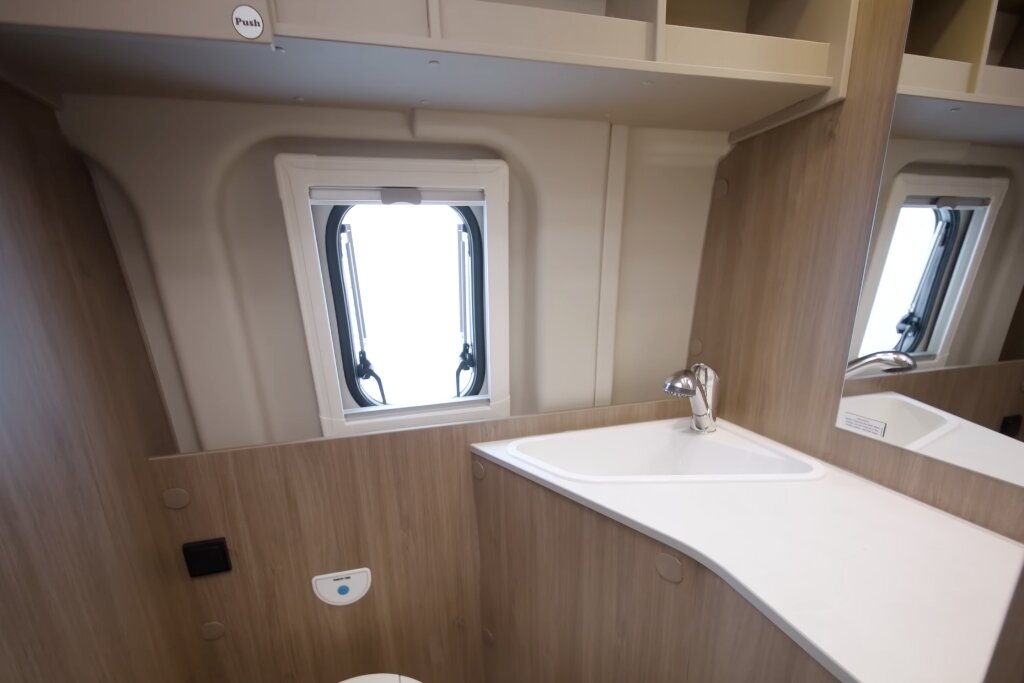

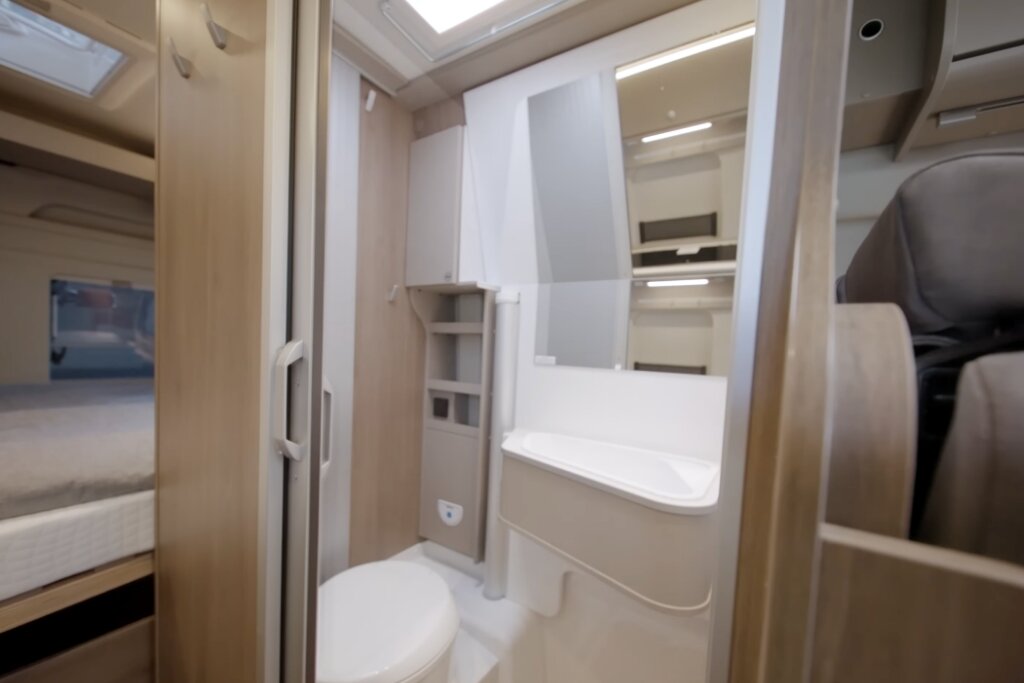

The compact bathroom combines a toilet, washbasin and shower in a minimal amount of space. Spacious shelves and recessed LED spotlights ensure clarity and functionality.
Children travel safely in the CV600: Isofix mountings enable child seats to be easily and securely attached to the rear seat.
Interior design of your choice.
Make your Campervan your home away from home – thanks to a variety of interior design options. See for yourself! The high-quality fabrics are not only beautiful to look at, but also durable, UV-resistant, and made for years of travel.

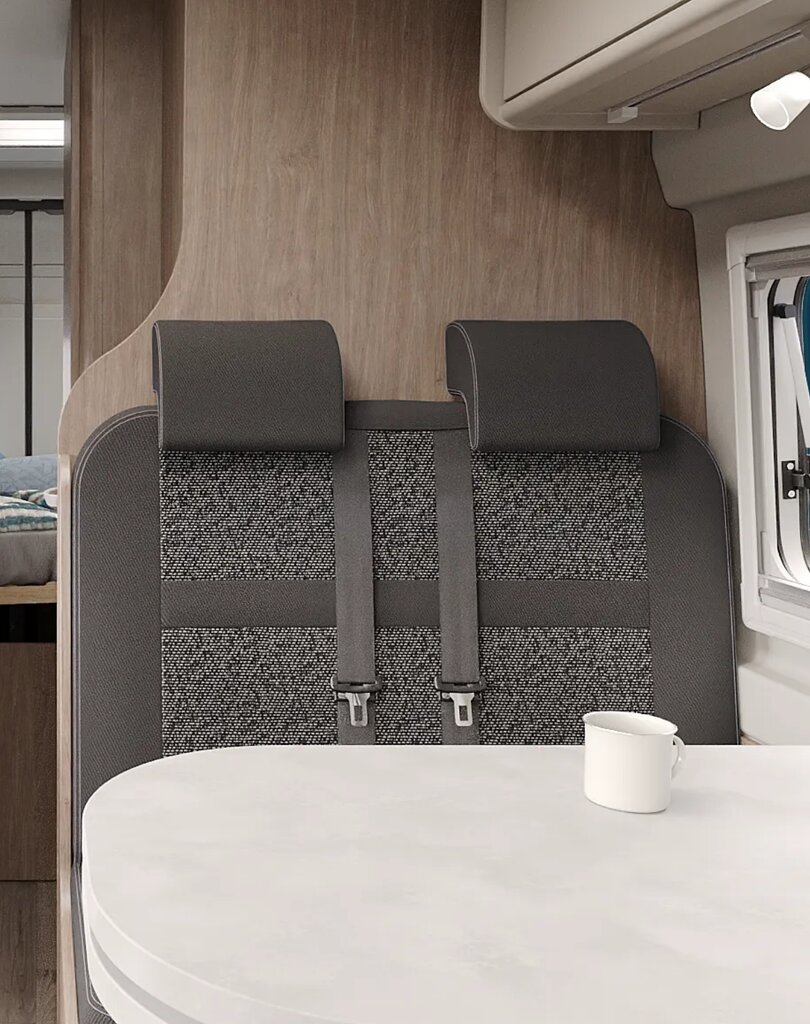

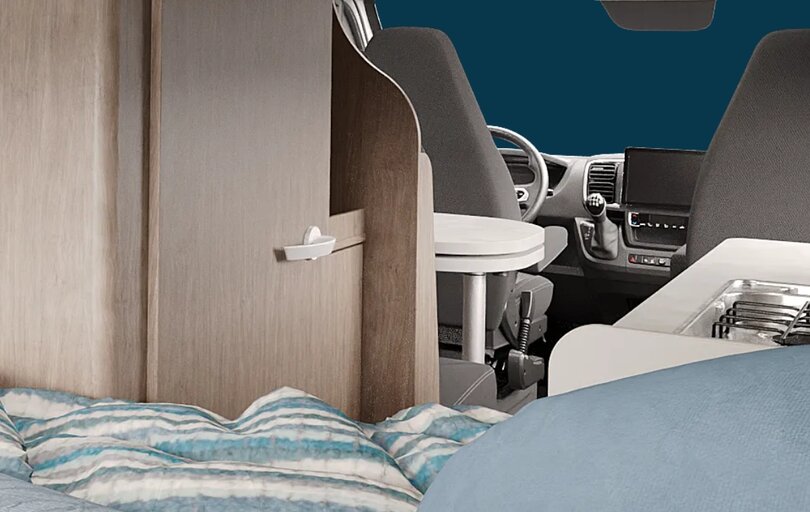

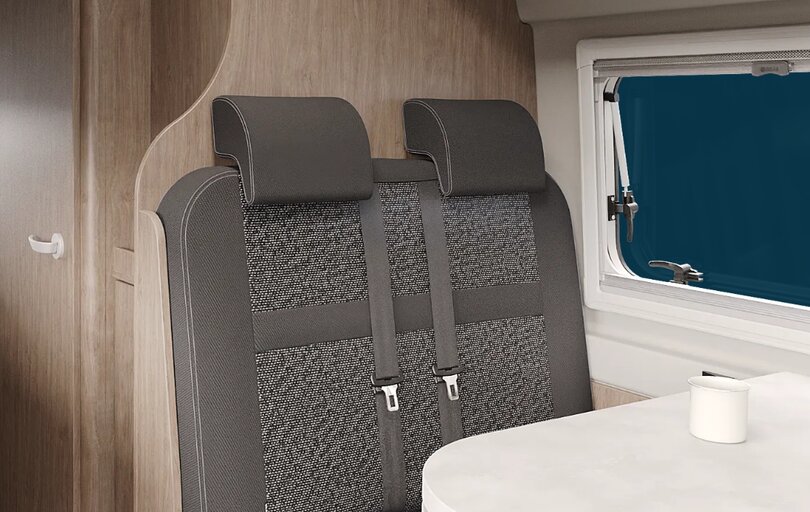

Interior Design: Black

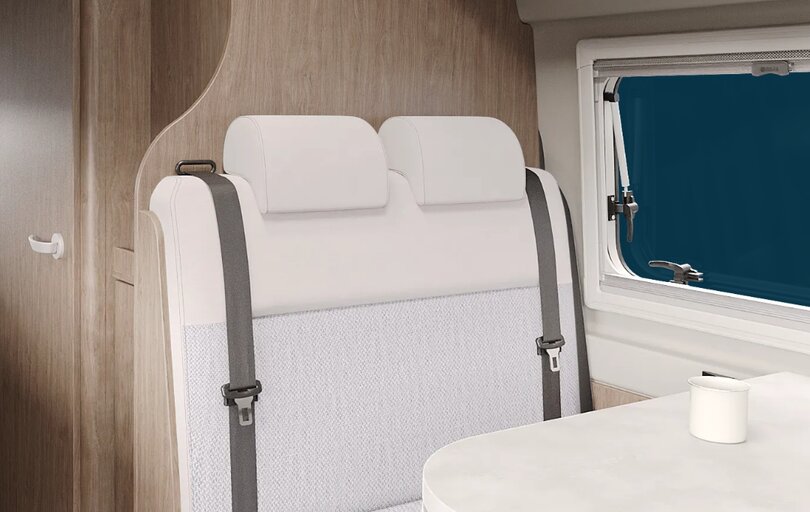

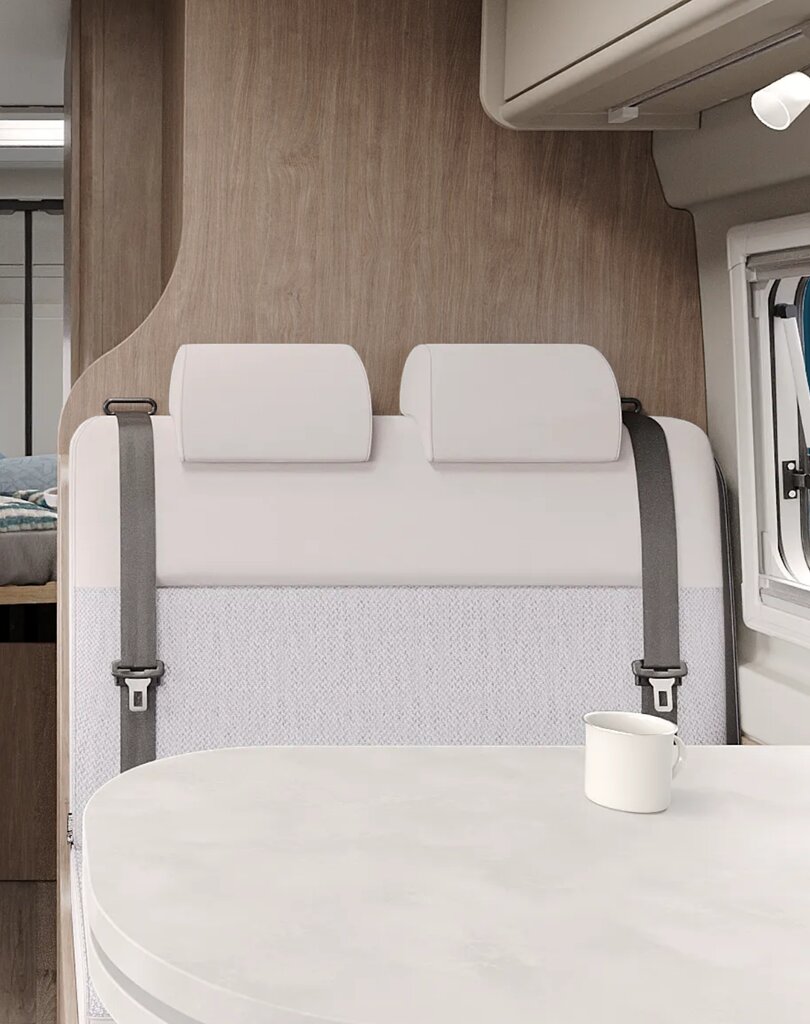

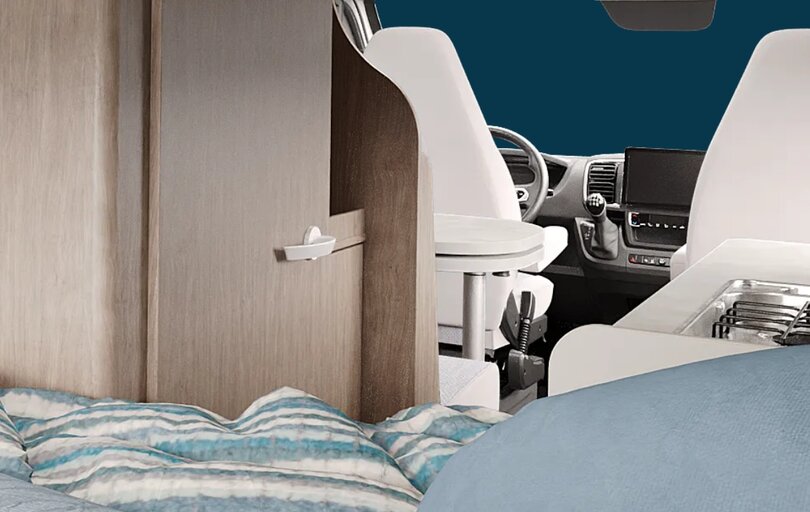

Interior Design: White
