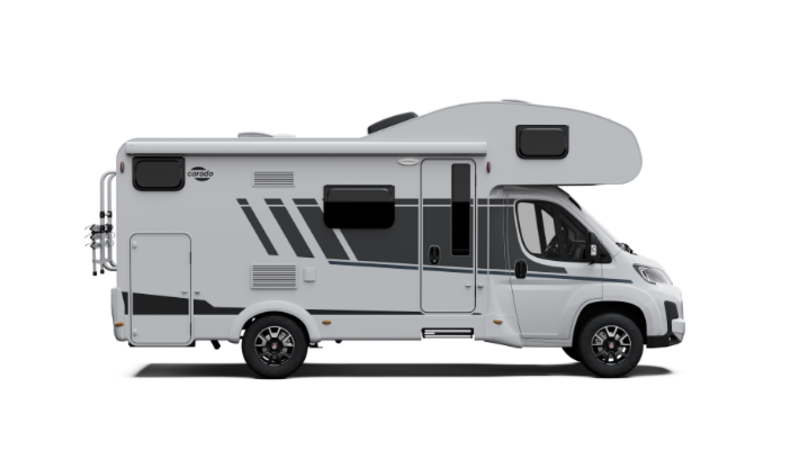

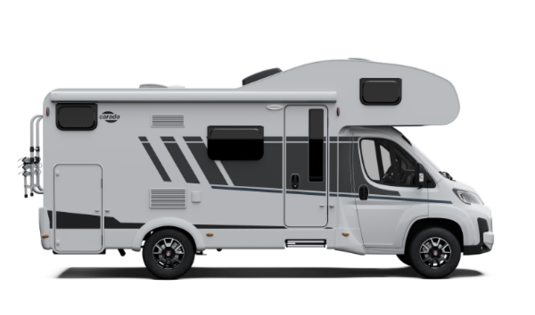

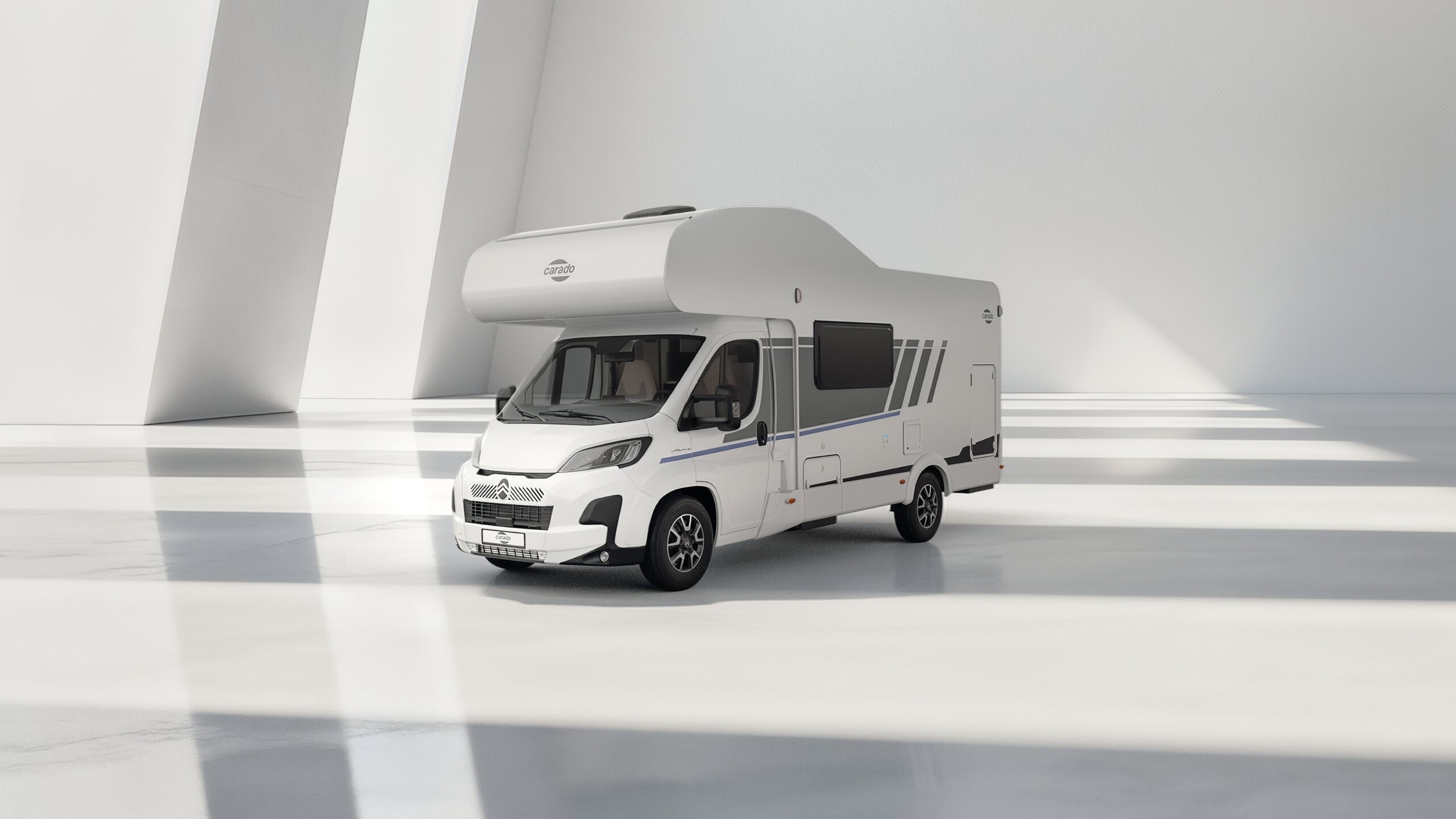

Up to six sleeping berths, a clever layout and high-quality equipment: this alcove model combines family friendliness with travel comfort in a compact space – for wonderful holidays.

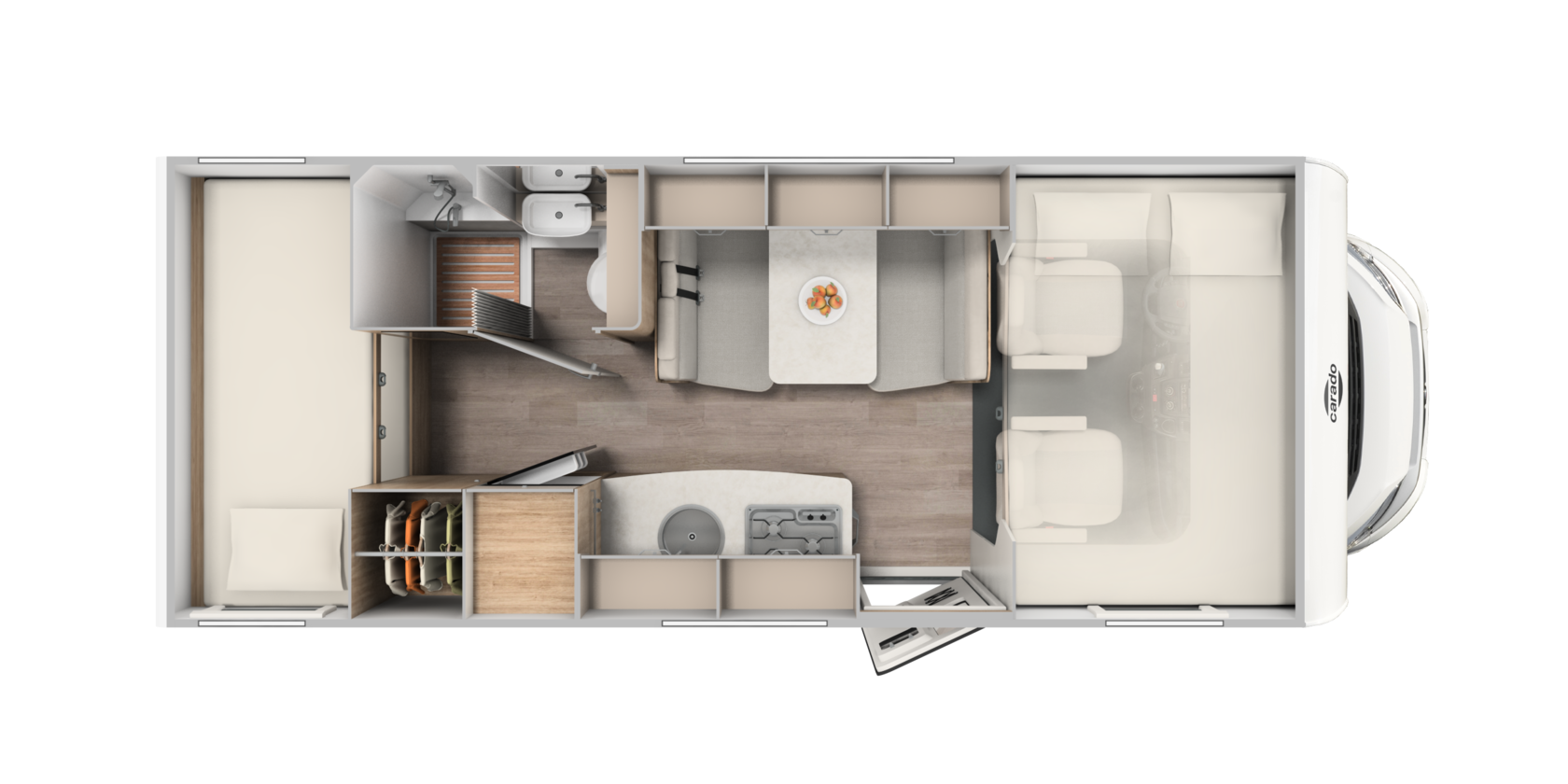

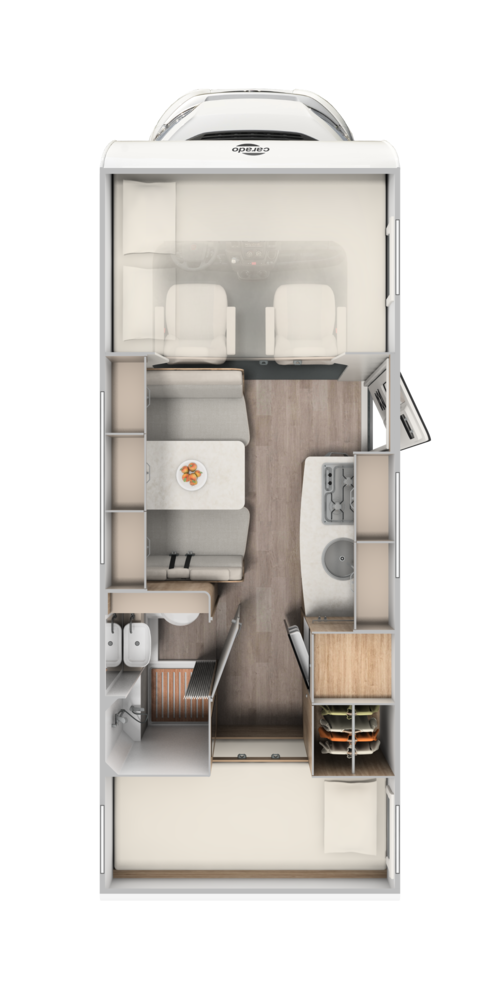

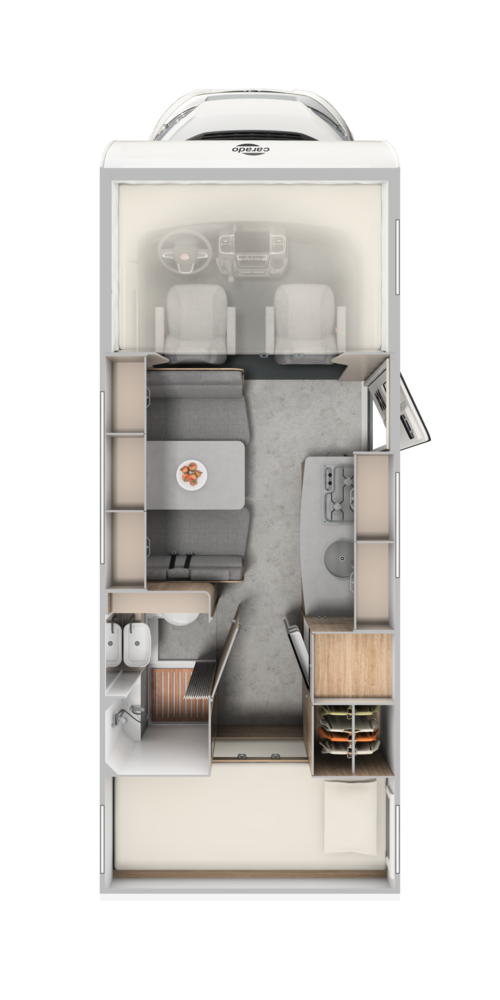

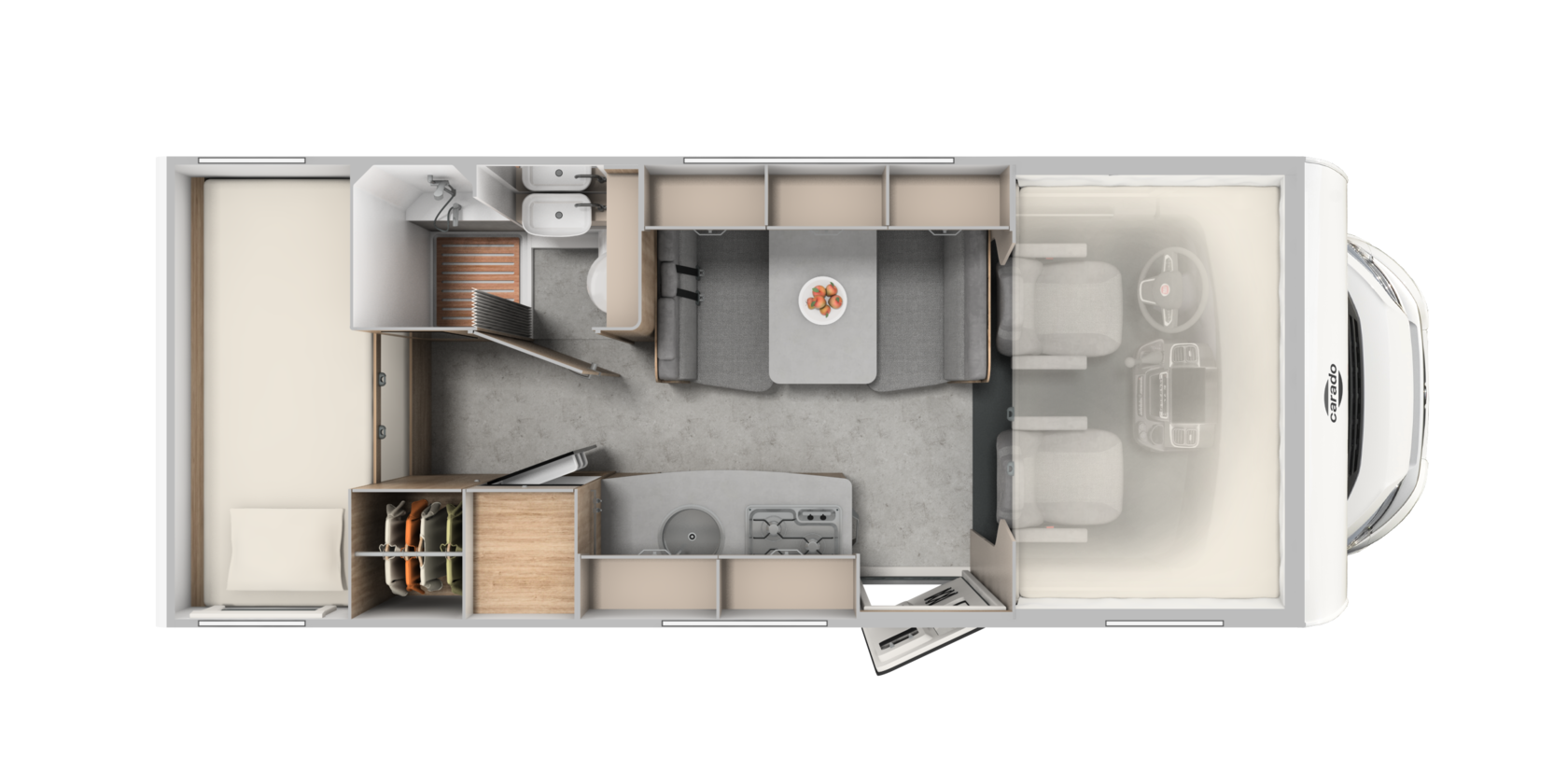

A floor plan full of ideas.
In the rear garage, even bulky items can be stowed away with ease. The robust GRP structure and aluminum side walls let you travel worry-free – including a 7-year warranty against water ingress.
In the A361 pro, children travel safely with you: Isofix mountings allow for easy and secure attachment of child seats on the bench seat.
Double-glazed opening windows as well as the clear glass roof vent and the panoramic roof vent (70 x 50 cm) let plenty of daylight into your alcove.
The 2-burner hob, sink and large 156-liter refrigerator with freezer compartment are arranged ergonomically. Drawers with Servo Soft closing make cooking on the road pleasantly quiet.
Technical specifications
- Basic price incl. VAT
- 64.299 €
- Permitted number of seats (including driver)*
- 6
- Berths
- 6
- Length | Width | Height (cm)
- 661 / 232 / 314
- Headroom in living area (cm)
- 195
- Chassis
- Citroën Jumper
- Standard engine
- 2.2
- kW (BHP)
- 103 (140)
- Mass in running order (kg)*
- 2937 (2790 to 3084)*
- Manufacturer-specified mass for optional equipment (kg)*
- 50
- Trailer load braked (unbraked) (kg)
- 2000 (750)
- Tire size
- 225/75 R 16 C
Important information regarding the selection of your motorhome
When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
1. The technically permissible maximum laden mass…
… is a value set by the manufacturer which the vehicle may not exceed. Carado specifies a layout-related upper limit for the vehicle, which can vary from layout to layout (e.g. 3,500 kg, 4,400 kg). You can find the corresponding specification for each layout in the technical data.
2. The mass in running order…
... consists – to put it simply – of the basic vehicle with standard equipment plus a standard weight of 75 kg for the driver. It is legally permissible and possible for the mass in running order of your vehicle to deviate from the nominal value stated in the sales documents. The permissible tolerance is ± 5 %. The permissible range in kilograms is given in brackets after the mass in running order. In order to provide you with full transparency regarding possible weight deviations, Carado weighs each vehicle at the end of the line and informs your trade partner of your vehicle's weighing result for forwarding to you.
Detailed explanations on the subject of mass in running order can be found in the “Legal Information” section.
3. The permitted number of seats (including driver)…
… is determined by the manufacturer in what is referred to as the type-approval procedure. This results in what is referred to as the mass of the passengers. For this, a standard weight of 75 kg per passenger (without driver) is calculated.
Detailed explanations on the subject of mass of the passengers can be found in the “Legal Information” section
4. The manufacturer-specified mass for optional equipment…
… is a value set by Carado per layout for the maximum mass of optional equipment that can be ordered. This limit is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle load capacity of the vehicles delivered by Carado. If, in exceptional cases, the weighing at the end of the line nevertheless shows that the actual load capacity falls short of the minimum pay-mass due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle.
Detailed explanations on the subject of the effects of the tolerances on the minimum pay-mass and the payload can be found in the “Legal Information” section.
5. The additional weight of optional equipment and packages...
... increases the actual mass of the vehicle (= mass in running order plus selected optional equipment) and reduces the pay-mass. The specified value shows the additional weight compared to the standard equipment of the respective layout. The total weight of the selected packages and optional equipment must not exceed the manufacturer-specified mass for optional equipment.
- Wheelbase (cm)
- 380
- Lying area Alcove / pull-down bed / Clever-lift bed (cm)
- 210 x 160
- Bed dimension middle L x B (cm)
- 175 x 100
- Bed dimension rear L x B (cm)
- 210 x 85 / 205 x 80
- Refrigerator volume incl. freezer (l)
- 156 (29)
- Heating type
- Combi 6 Gas
- Fresh water tank capacity total / at driving filling (l)
- 122 / 20
- Waste water tank (l)
- 92
- Sockets 230 V
- 5
- Sockets: USB
- 2
- Inner dimensions storage locker right/left W x H (cm)
- 65 x 120 / 60 x 100
- Gas bottle storage (filling weight in kg)
- 2 x 11
Standard equipment
Packs
| pro pack A361 & A464 |
| Basic Pack |
| Optic Pack 1 | Painted bumpers |
| Optic Pack 2 | Alloy wheels |
Base vehicle
| Citroën Jumper 3.500 kg | 2.2 | 103 kW | 140 BHP Euro 6 | 6-speed manual gearbox |
| Chassis colour Icy-white |
| Wide-track chassis |
| Front wheel drive |
| Daytime running lights | integrated in headlights |
| Headlights with black frame |
| Cruise control |
| Driver and Passanger airbag |
| ABS, EBD (electronic brake force distribution), ESP (electronic stability program) |
| ESC (electronic stability control) including ASR (anti-skid control), hill holder (hill start assist), CWA (crosswind assist), trailer stability control and PCB (post-collision braking) |
| Traction+ incl. Hill Descent Control |
| Start & stop function incl. charge booster |
| Multifunction steering wheel |
| USB socket (A+C) |
| Electric operated cab windows and central locking |
| Central cup holder |
| Comfortable driving experience with rear and front axle stabilizers |
| Fix & Go breakdown kit |
| Manual cab air conditioning |
| Disc brakes | heat convection | tachometer | power steering | immobiliser | 3-point seat belt |
| Tyres M+S Camping (snowflake) |
| Electric and heated mirrors |
| Radio aerial integrated in mirror |
| Radio pre-wiring including speakers |
| Captain chairs with covers |
| Driver and passenger seats with armrests & upholstered covers |
| Driver and passenger seat with lumbar support |
| Height and tilt adjustable driver and front passenger seats |
| 60 l fuel tank |
| Tyre pressure indicator |
| Lane assist |
| Driver fatigue detection |
| Traffic sign recognition |
| Automatic braking system with pedestrian detection |
| Intelligent speed detection |
| Reverse Monitoring (Radar) |
Exterior setup
| 7-year water ingress warranty |
| GRP (glass fibre reinforced plastic) roof and rear wall |
| Aluminium sidewalls |
| Roof and sidewall thickness 34 mm | floor thickness 42,5 mm |
| Rear light carrier in three parts with integrated LED multifunction lights |
| Double glazed hinged window with cassette blinds and flyscreens (except for bathroom) |
| Roof light with frosted perspex glass and flyscreen |
| Electric entrance step |
| Large rear garage with lowered frame | lashing rings and interior lighting (depending on model) |
| Splash water seals for the exterior storage locker and doors |
| Payload in garage up to 150 kg |
| 2nd external storage door |
| High quality entrance door with ergonomic handle inside and outside |
Comfort
| Ergonomically shaped upholstery for improved seating comfort |
| Isofix for 2 seats |
| High-quality mattress in all beds |
| Removable and washable mattress cover |
| Wooden slatted frame in all fixed-beds for better sleeping comfort |
| Overcab with side window on the right | hot air nozzles | 72 cm headroom and 210 x 160 cm bed size |
| Sliding overcab bed for an improved access to the cab |
| Safety net on overcab beds, bunk beds and on pull-down beds (depending on model) |
| Spacious storage compartments and storage options |
| Ventilation for storage locker and seat backrest |
| Safety Pack: 2 headrests and 2 lap belts on bench against direction of travel (Persons permitted depending on vehicle weight) * |
| Bed conversion for seating area |
| Furniture in 'Visby Oak' and 'Sand Grey' |
| Floor in 'Glacier Grey' |
Installations
| LED lighting integrated above the roof cabinets |
| High-performance, maintenance-free leisure battery (95 Ah AGM) |
| On-board control panel supplies information about filling levels and battery capacity |
| Automatic switching and separating systems for starter and leisure battery as well as for refrigerator |
| Electric charger for leisure and vehicle battery 12 V / 18 A |
| CEE 230 V external socket with safety device |
| Residual Current Device (RCD) |
| LED awning light |
| LED interior light |
| USB Socket 3x A / 1x C (layout depending) |
| Mirror and coat hooks |
| Fresh water tank capacity total 122 l | waste water tank 92 l |
Heating | gas supply
| Gas bottle locker for 2 x 11 kg gas bottles |
| Gas heating Combi 6 |
| Gas control valves easily accessible and centrally arranged |
Kitchen
| Ergonomically arranged kitchen with spacious work top |
| Large soft-close drawer in kitchen |
| 2 burner hob and glass lid |
| Large stainless steel circular sink with cover |
| Large 156 l fridge with separate 29 l freezer compartment |
| LED light band |
| Waste bin |
| Flexible railing system with 2 hooks |
Bathroom
| Bathroom with separate shower |
| Swivel cassette toilet with electric flush |
| Roof vent with integrated flyscreen blind (depending on model) |
| Large mirrors |
| Clothes rail in bathroom |
Soft furnishing
| Soft furnishing in Grey |
Optional equipment
Packs
| ACC Pack |
| 7" Infotainment Pack |
| 10" radio with rearview camera |
| Lounge Pack |
Base vehicle
| Citroën Jumper 3.500 kg | 2.2 | 103 kW | 140 BHP Euro 6 | 8-speed automatic gearbox |
| Electric parking brake |
| 90 l fuel tank |
Increase of load capacity
| Weight increase to 3.650 kg (no chassis modification) * |
Comfort
| Special coloured overhead storage in Visby Oak |
Installations
| Caramatic SafeDrive PLUS |
| Heating Combi 6 E (with el. heating element) | digital control panel |
| Pre-cabling for reversing camera |
| Lithium battery 104 Ah instead of AGM 95 Ah |
| Additional 104 Ah lithium battery |
Soft furnishing
| Soft furnishing in Brown |
Original Accessories
| Security Package |
| Smart Battery System, set of 2, 50 AH |
| Smart Battery System 5-pack 125 AH |
| ClearliQ travel water filter |
| Bike Carrier for 2 bikes |
| Passenger-side door safe for the Fiat Ducato |
| Children's bed |
| Driver's cabin carpet |
